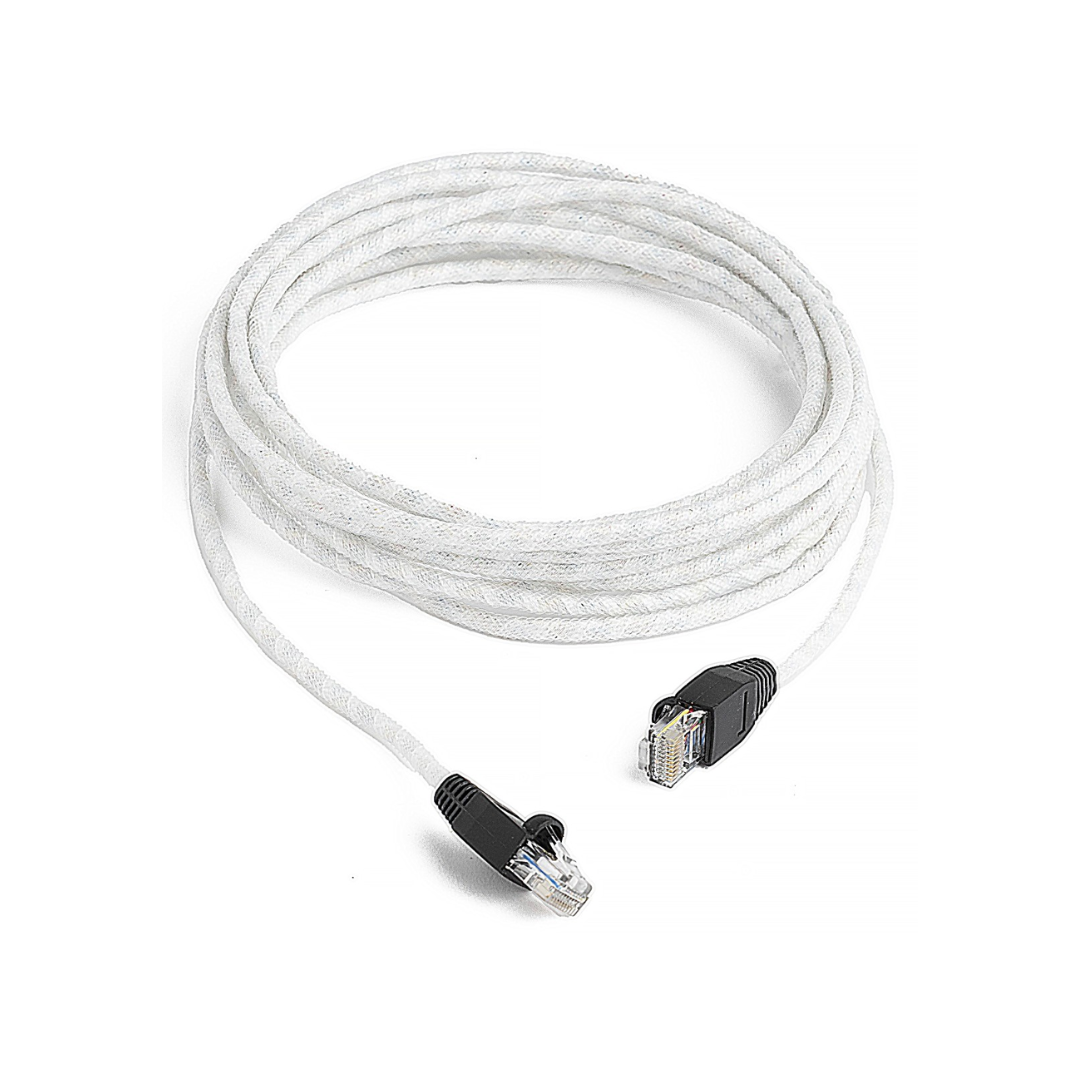

Andel Floodline® Multi-8 High-Sensitivity
SKU: Floodline Multi-8 High-Sensi
Ask for Best Price
High-sensitivity cable for areas where detection of the smallest amount of water, such as condensation, is required
The cable has a fine multi-filament cellulosic outer covering that draws liquid into detection cores, allowing the system to react to the smallest amount of water, conductive liquid and condensation. Miulti-8 High-Sensitivity Detection Cable provides visual evidence of where and when the cable is wet.
One length of cable provides up to eight separately reporting zones. The zone changeover points along the cable are provided by Floodline® junction boxes. The cable is available in any length to provide as much coverage as required, typically between 5 metres and 15 metres.
The cable can be attached to the underside of pipes, inside or outside lagging, laid in drip trays and catchment troughs and fixed to soffits and ceilings. The cable is activated by contact with any conductive liquid anywhere along its entire length. The cable can be wet and dried any number of times and returned to use.
Free local delivery
Manufacturer warranty
Local SG support
Description
Floodline® 8-Zone High-Sensitivity Cable can connect to any Floodline® zonal control panel or unit either directly or via leader cable.
Standards tested and met: CPR (Construction Products Regulation) Testing
Under the harmonised European standard EN 50575 this cable has been tested for heat release, smoke production and flame spread in accordance with EN 60332-1- 2:2004+A11:2016.
Benefits at a glance
- High-sensitivity cable for areas where detection of the smallest amount of water or condensation is required
- Allows up to eight separately reporting leak detection zones from a single cable
- Special colour change system provides evidence that the cable has been wet
- Quick drying, the cable can be wet and dried any number of times and returned to use
- Available in any length to provide as much coverage as required, typically between 5 metres and 15 metres
- Connects to any Floodline® control panel
Technical data
| Component | Specification | Details |
|---|---|---|
| General | Product Type | Multi-Zone, High-Sensitivity Water-Sensitive Leak Detection Cable |
| Durability | Tough, flexible, lightweight, and quick-drying construction | |
| Compatibility | Connects to any Floodline® zonal control panel or unit (e.g., Multi-Zone Control Panel, HLD Control Panel) either directly or via leader cable | |
| Benefits | High-sensitivity detection, multi-zone reporting from a single cable, high performance, easy to install and maintain, quick drying, reusable, provides early warning of minor leaks | |
| Warranty | 10-year warranty (when subscribed to the Andel Service and Maintenance Plan) | |
| Construction | Material | All polymeric, low smoke and fume, zero halogen construction; often includes an absorbent outer braid for enhanced sensitivity |
| Diameter | Approximately 5mm | |
| Zone Changeover | Zone changeover points along the cable are provided by either traditional Floodline 8-zone junction boxes or the Plug and Play Auto-Connect system | |
| Compliance | Fire Performance (EN 50575) | Tested for heat release, smoke production, and flame spread in accordance with EN 50399:2011+A1:2016 and EN 60332-1-2:2004+A11:2016 |
| Euroclass Classification | Classified as Euroclass Dca-s2,d0 (for standard Multi-8, but High-Sensitivity versions may also be Eca depending on specific construction) |
