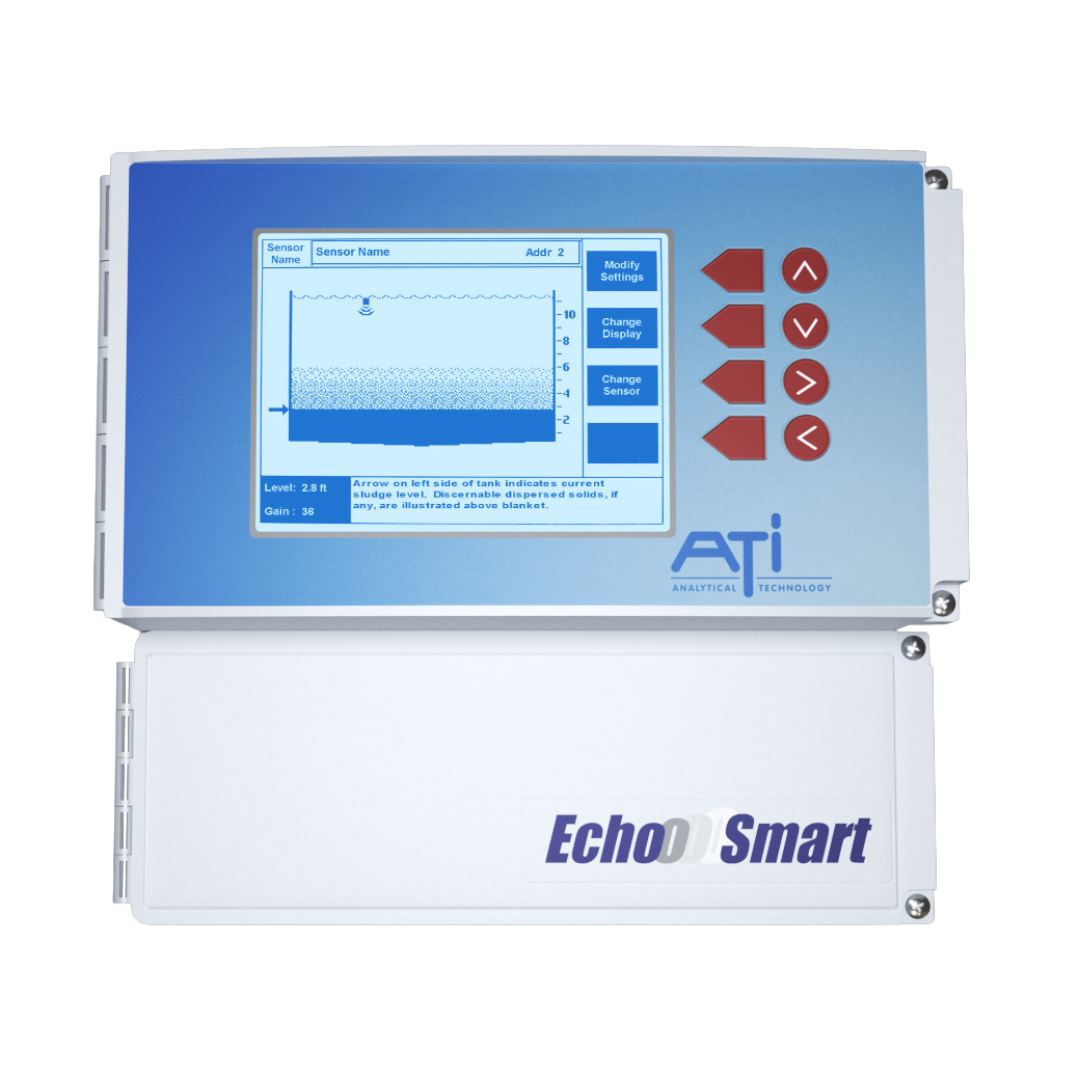

ATi by Badger Meter® EchoSmart Sludge Blanket Monitoring System
SKU: EchoSmart
Ask for Best Price
Our sensors generate and process the ultrasonic signal for continuous, real-time measurement, resulting in greater flexibility in equipment configuration options, enhanced communication capabilities and reduced installation costs.
Free local delivery
Manufacturer warranty
Local SG support
Description
Features and Specifications:
Measuring Principle:
Underwater Acoustic Measuring Parameter: Level, Turbidity (Optional)
Range: 0.305 to 10.0m
Sensor Construction: IP68, ABS and epoxy Self-cleaning
Wiper Sensor, silicon wiper (optional)
Controller Communications: RS-485 MODBUS RTU, (2) 4-20mA Output, Optional 900MHz RF Module Enclosure: NEMA 4X, IP65;
Polycarbonate Networks of up to sixteen sensors possible with only one controller needed Application: The EchoSmart is available for a wide range of applications including: Primary and Secondary Settlement Tanks DAF Thickeners Gravity Thickeners Clarifier.
