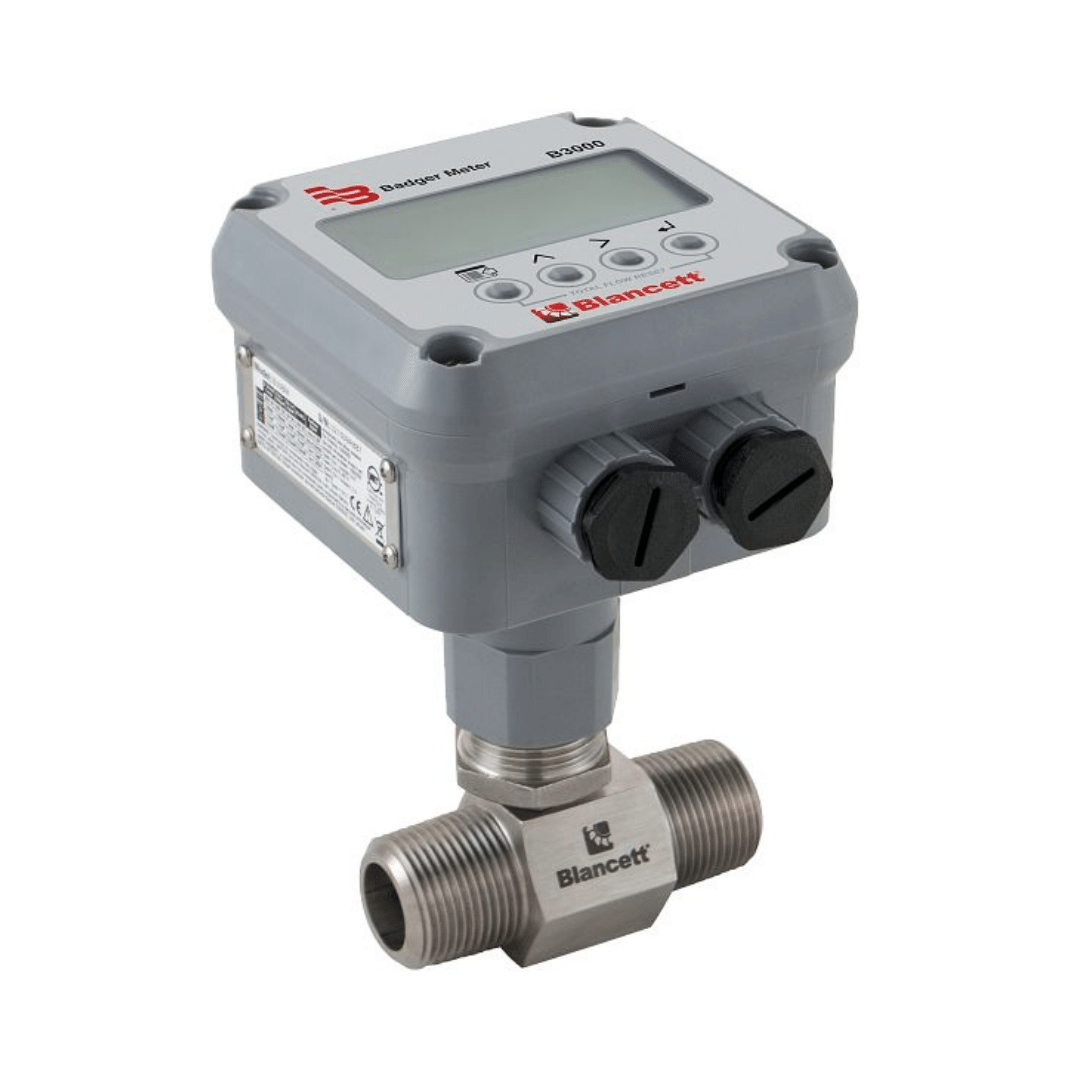

Badger Blancett® B1500 Turbine Flow Meter

The Blancett B1500 Turbine flow meter comes with national pipe thread (NPT) or flange process fittings, sizes up to 2 in. and can be ordered with a Blancett B3000 flow monitor to accommodate the requirements of most applications and flow ranges.

Enhanced Flow Range

Has an exceptional speed-of-response, with reduced pressure drop and increased usable flow range with less sensitivity to fluid temperature/viscosity effects.

Application Versatility

Ideal solution for standard clean, filtered liquid flow applications in precision industrial processes, found in the chemical/petrochemical, refining and general industries.

Reliable Construction

Features 316 stainless steel housing and axial helical rotor made of 17-4 stainless steel that rotates on ceramic ball bearings.

• Size Range6...50 mm·
• Temperature Range-101...148 °C·
• Flow Range0.9...946 lpm·
• Pressure Range408 bar
