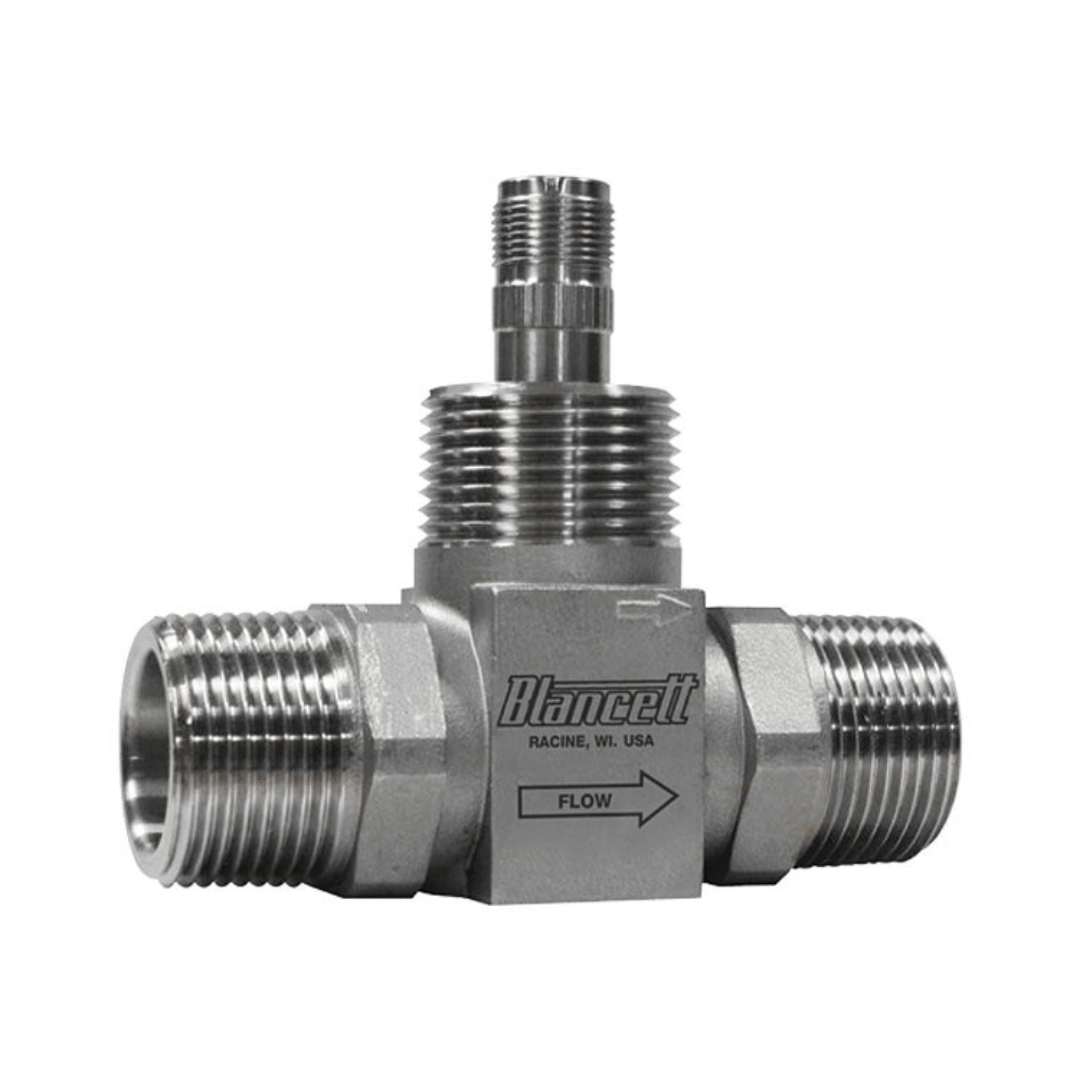

Badger Blancett® Model 1100 Turbine Flow Meter
The Blancett® Model 1100 Turbine flow meter is designed to withstand the demands of the most rigorous flow measurement applications, both on and off the oilfield.
Description
Download
The Model 1100 Turbine flow meter maintains measurement accuracy and mechanical integrity in many industrial applications.
Simple Installation
Built for simple installation and service, requiring a minimum of 10 diameters upstream and 5 diameters downstream straight pipe length.
Flexible Operation
Designed to operate in any orientation (horizontal to vertical) as long as the flow direction arrow is aligned with the actual line flow.
Durable Construction
Features a rugged 316 stainless steel housing and rotor support assemblies with CD4CU stainless steel rotor.
- Temperature Range–101…232 °C·
- Flow Range2.27…18,930 lpm·
- Pressure RangeUp to 344.74 bar·
- Accuracy±1%
