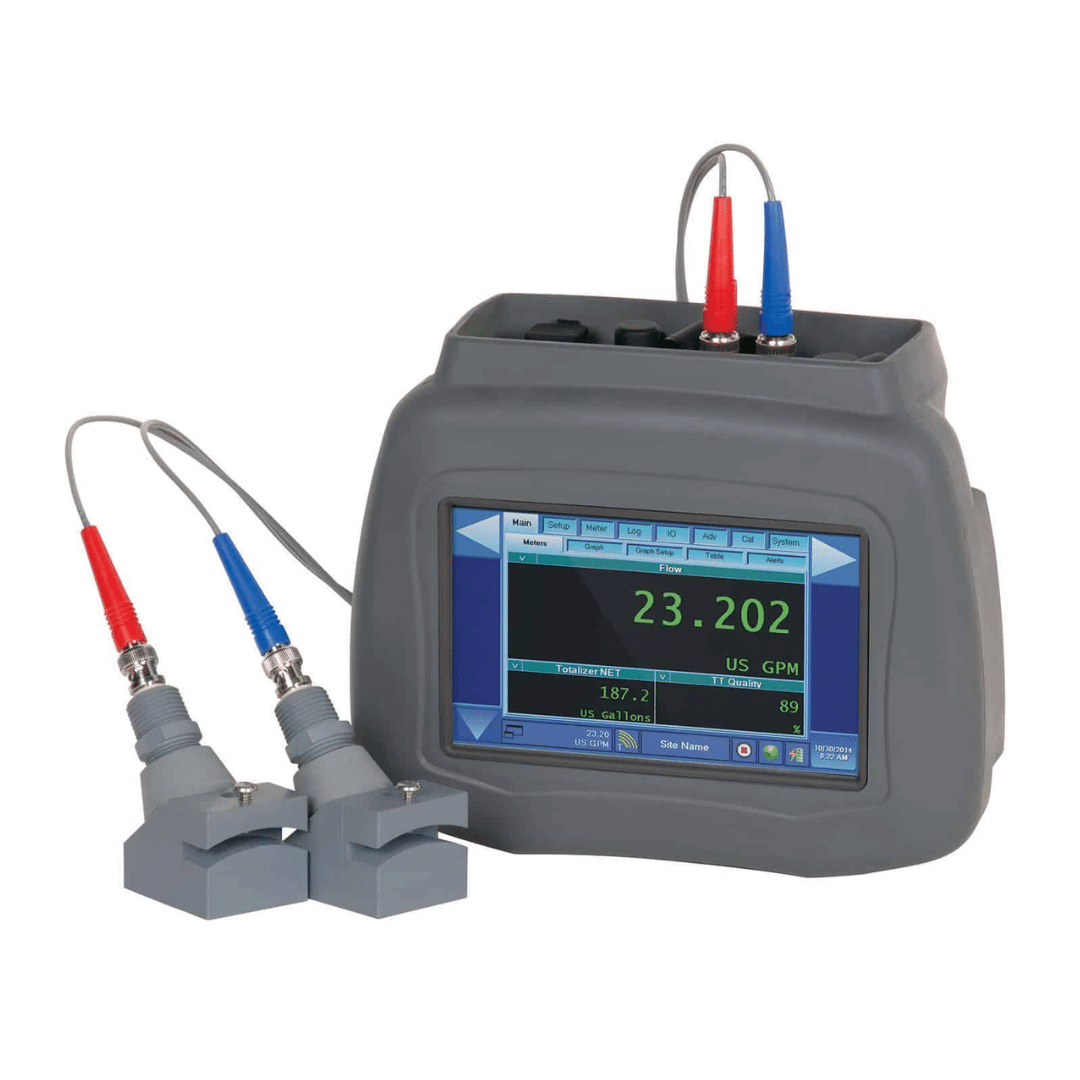

Badger DXN Portable Hybrid Ultrasonic Flow Meter
The DXN Portable Ultrasonic Flow and Energy Meter is a true hybrid instrument, capable of measuring liquid flow with multiple technologies, including: Doppler, transit time and liquid thermal (heat energy) flow. Easy to install by clamping onto the outside of the pipe, the DXN measures flow using non-invasive ultrasonic sensors. Compatible with a pipe wall thickness gauge, inside pipe diameter can be verified to ensure accurate ultrasonicmeasurements when piping details are unknown or unavailable.
Description
Download
Features:
- Flow: Ultrasonic transit time and Doppler (reflection of acoustic signals); hybrid operation; liquid thermal energy Pipe wall thickness:
- Ultrasonic transit time of acoustic signals Transit -Time; Medium and large pipes: Bi-directional up to 40 ft/s (12 m/s) Transit -Time; Small pipes (DTTSU): Bi-directional up to 20 ft/s (6 m/s), depending on FPS (12 MPS) pipe and fluid
- Doppler: Uni-directional to 40 FPS (12 MPS)
- Logging: Greater than 300 sites stored in 1 GB; download to USB flash drive
- Compliance: Safety: UL61010-1, CSA C22.2 No. 61010-1, EN61010-1 Directives: 2006/95/EC low Voltage, 2004/108/EC
