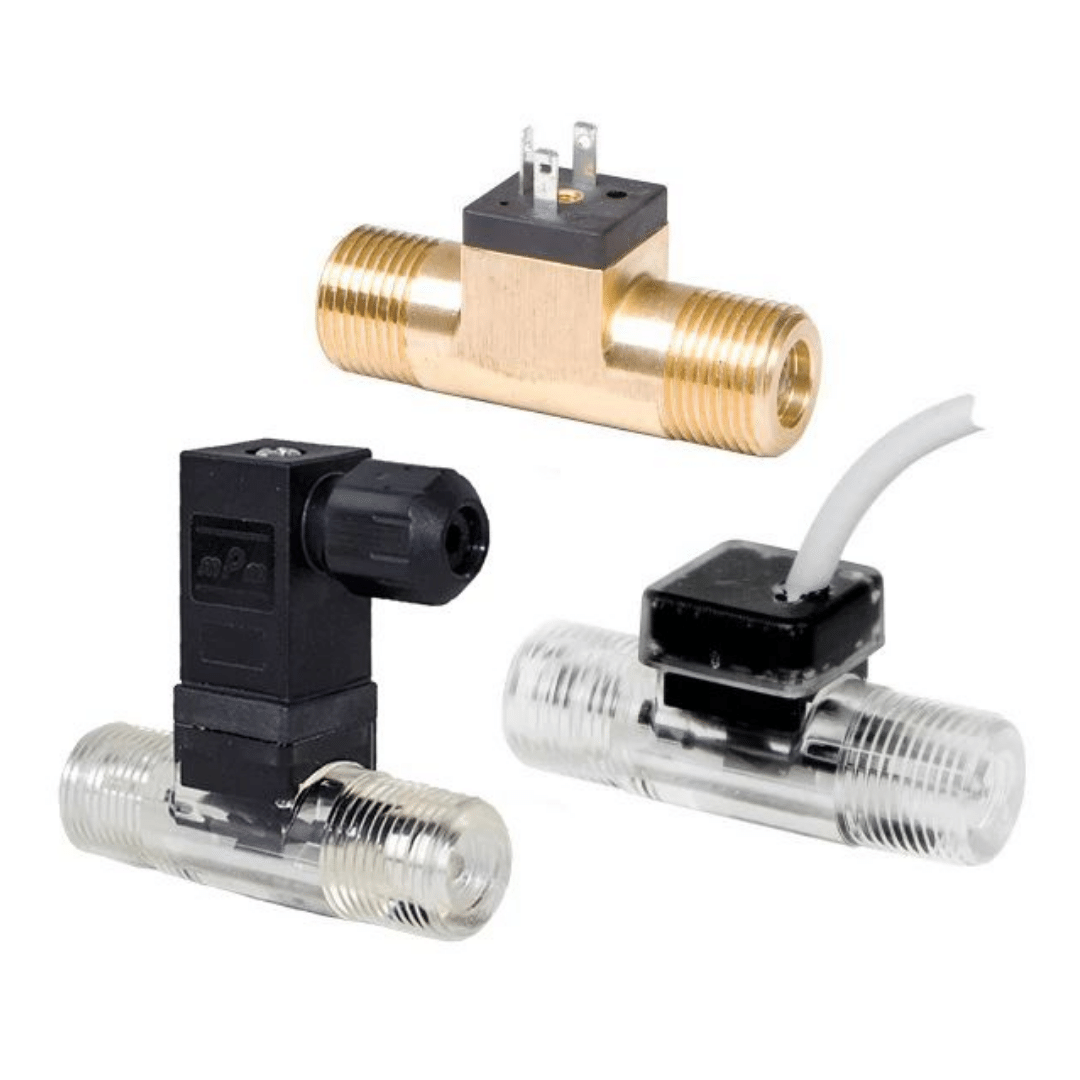

Badger Vision Turbine Sensors
The Vision flow sensors detect small flows and are versatile. Due to their simple design, changes in flow rate can be detected without delay. The choice of material allows the measurement of low viscous and non-aggressive liquids. The Vision flow sensors offer an efficient solution and contribute to the responsible, careful use of available resources.
Description
Download
Product Specifications
-
Size
DN 5 to DN 12
-
Temperature Range
-20...100°C
-
Flow Range
0.1...65 lpm
-
Pressure Range
max. 25 bar
-
Accuracy
± 3% of value
Compact And Cost-Effective Meter.
Designed for flow measurement of low viscous and non-aggressive liquids such as water, demineralized water, beverage bases, oils/cible oils, household detergents and coolants.
- Compact size. Measurement in any meter orientation.
Product Certifications
KTW-BWGL
The approval is based on the German procedure for compatibility testing of plastics in contact with drinking water.
WRAS
Testing based on the requirements of BS 6920, "Suitability of non-metallic products for applications in contact with drinking water, influence on drinking water quality".
Certified flow meters comply with the Water Supply (Water Fittings) Regulations and Scottish Byelaws.
NSF
Certified flow meters comply with NSF/ANSI 61: “Drinking Water System Components – Health Effects” and with NSF/ANSI 372: “Drinking Water System Components – Lead content”.
