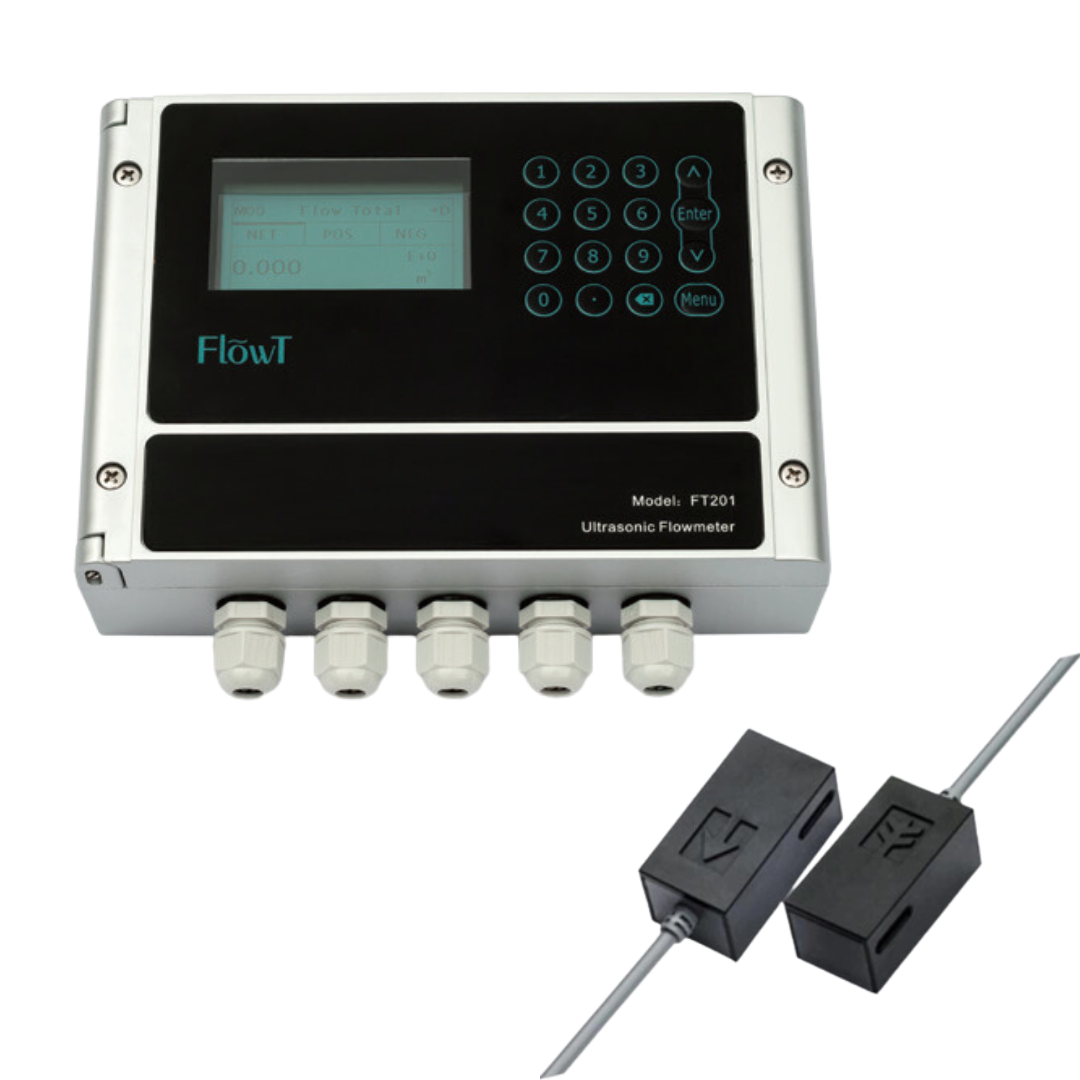

FlowT Fixed Clamp-On Ultrasonic Flow Meter FT201
SKU: FT201
S$0.00Price

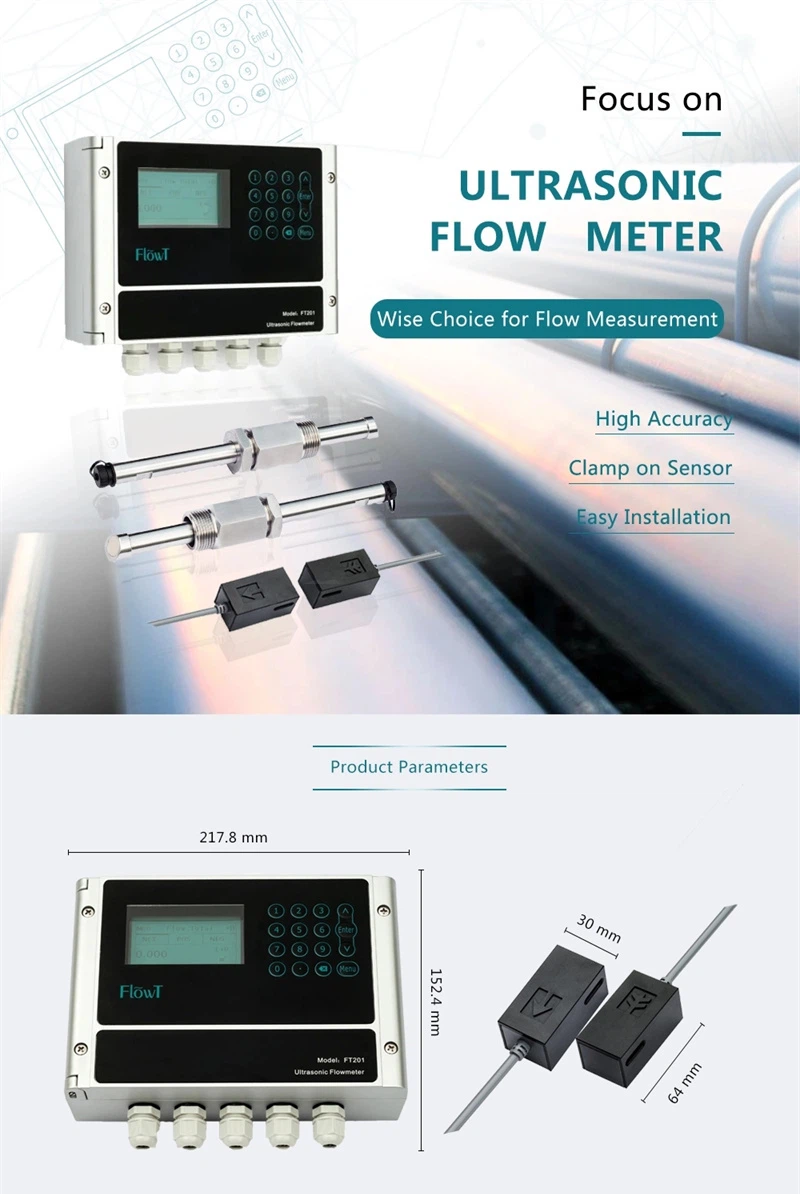

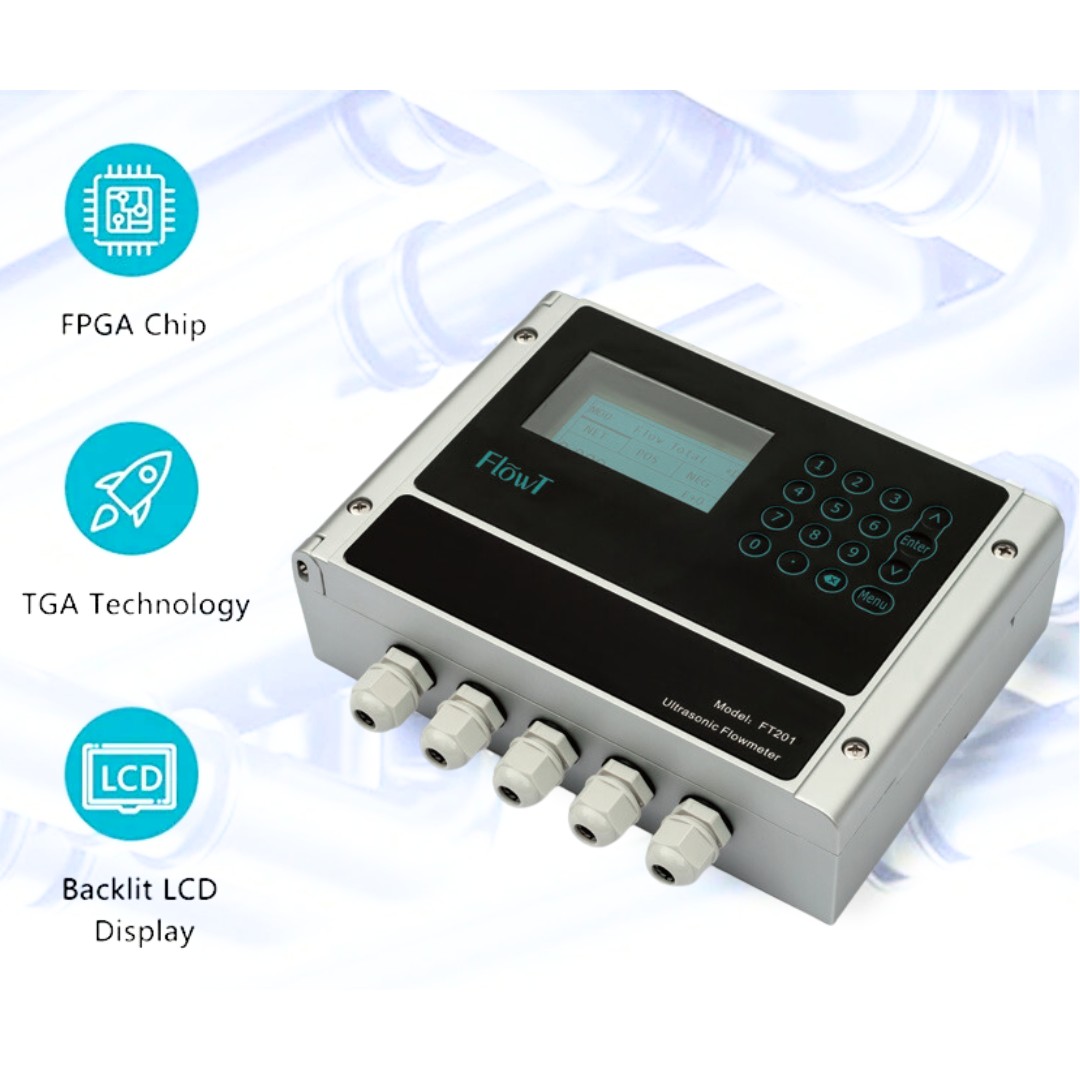

FT201 is a wall-mount, clamp- on type ultrasonic flow meter which uses the transfer time technology. Designed using FPGA chip and low-voltage broadband pulse transmission.Both Clamp on type sensors and Insertion type sensors are available. 201 has a 240*128 back lit LCD with 4 line menu display and also the clear, user-friendly menu selections make the flow meter more simple and convenient to use.
Description
Download
Daily, monthly and yearly totalized flow. Parallel operation of positive, negative and net flow totalizes with scale factor (span) and BTU Capacity. While the output of totalizes pulse and frequency output are transmitted via relay and open collector.

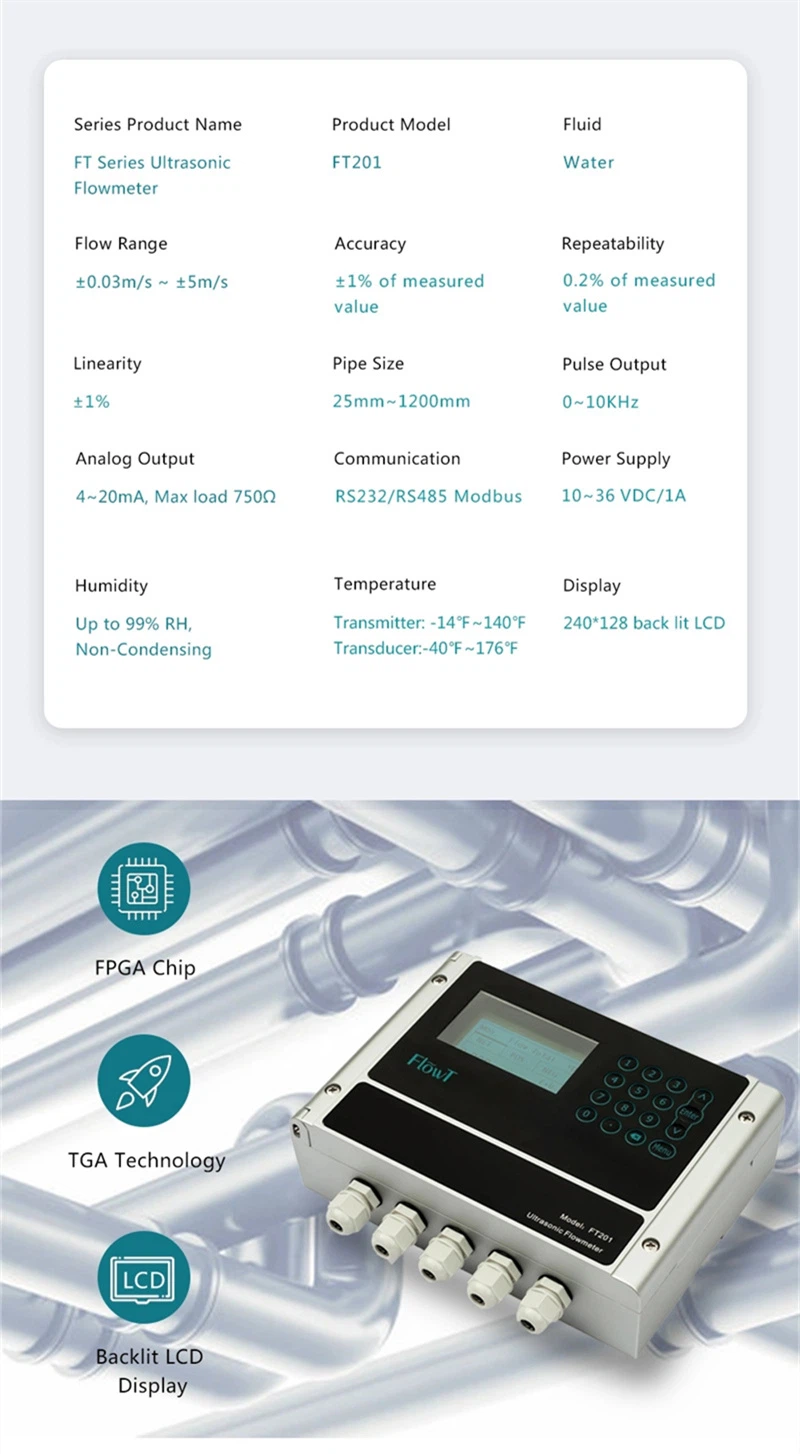

Specification
Performance
- Flow range: ±0.09ft/s ~ ±16ft/s (±0.03m/s ~ ±5m/s)
- Accuracy: ±1% of measured value
- Repeatability: 0.2% of measured value
- Linearity: ±1%
- Pipe size: 1"to 48" (25mm to 1200mm).Pipe size under 1” is an option
- Fluid: Water
Function
Outputs:
- Analog output: 4~20mA, max load 750Ω.
- Pulse output: 0~10KHz
- Communication: RS232/RS485 Modbus
- Power supply: 10~36VDC/1A
- Display: 240*128 back lit LCD
- Temperature:
- Transmitter: -14℉~140℉(-20℃~60℃)
- Transducer:-40℉~176℉(-40℃~80℃,standard)
- Humidity: Up to 99% RH,non-condensing
Physical
- Transmitter: PC/ABS,IP65
- Transducer: ABS,IP68
- Encapsulated design
- Double-shielded transducer cable
- Standard/maximum cable length:30ft/900ft(9m/274m)
