FlowT Portable Clamp-On Ultrasonic Flow Meter FT221

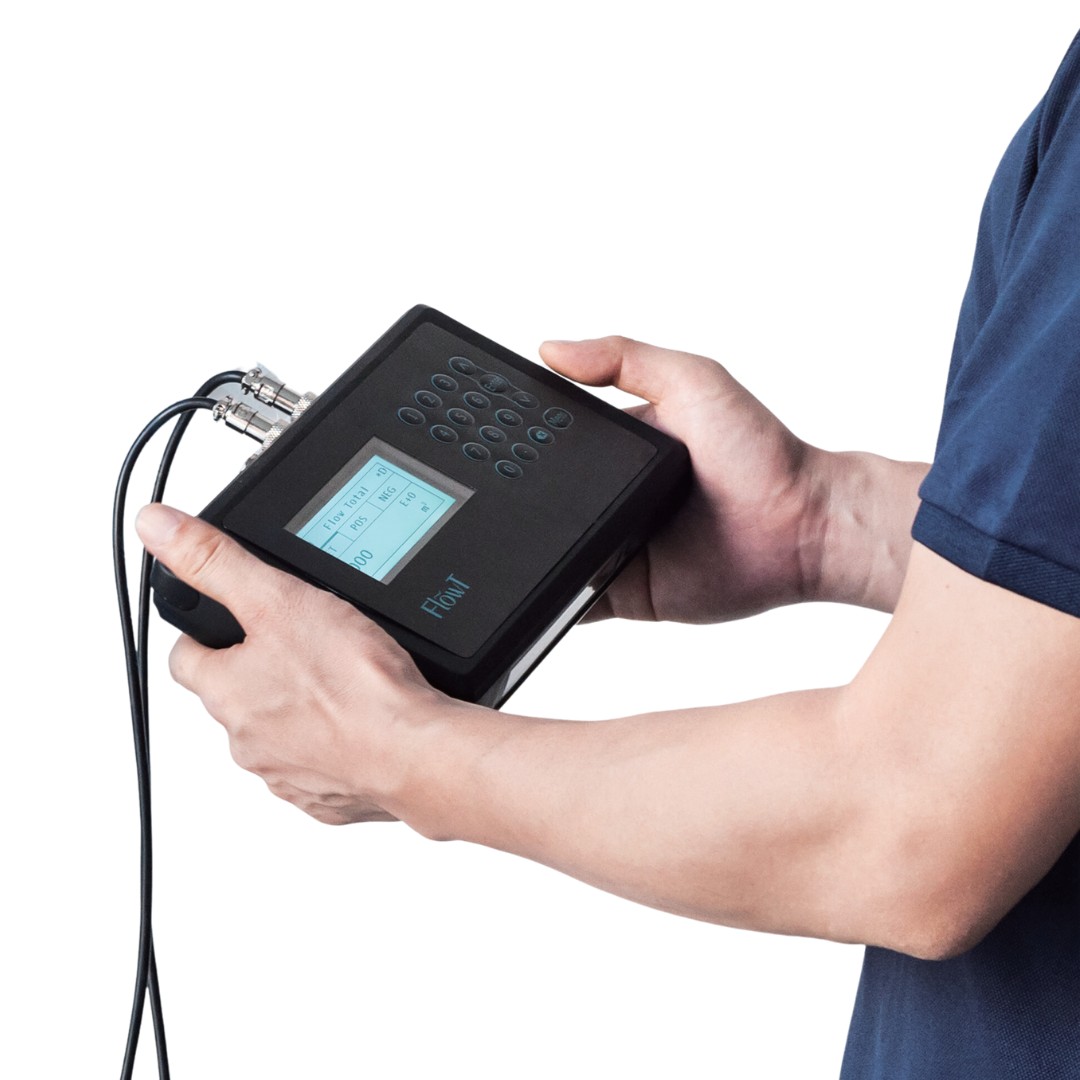

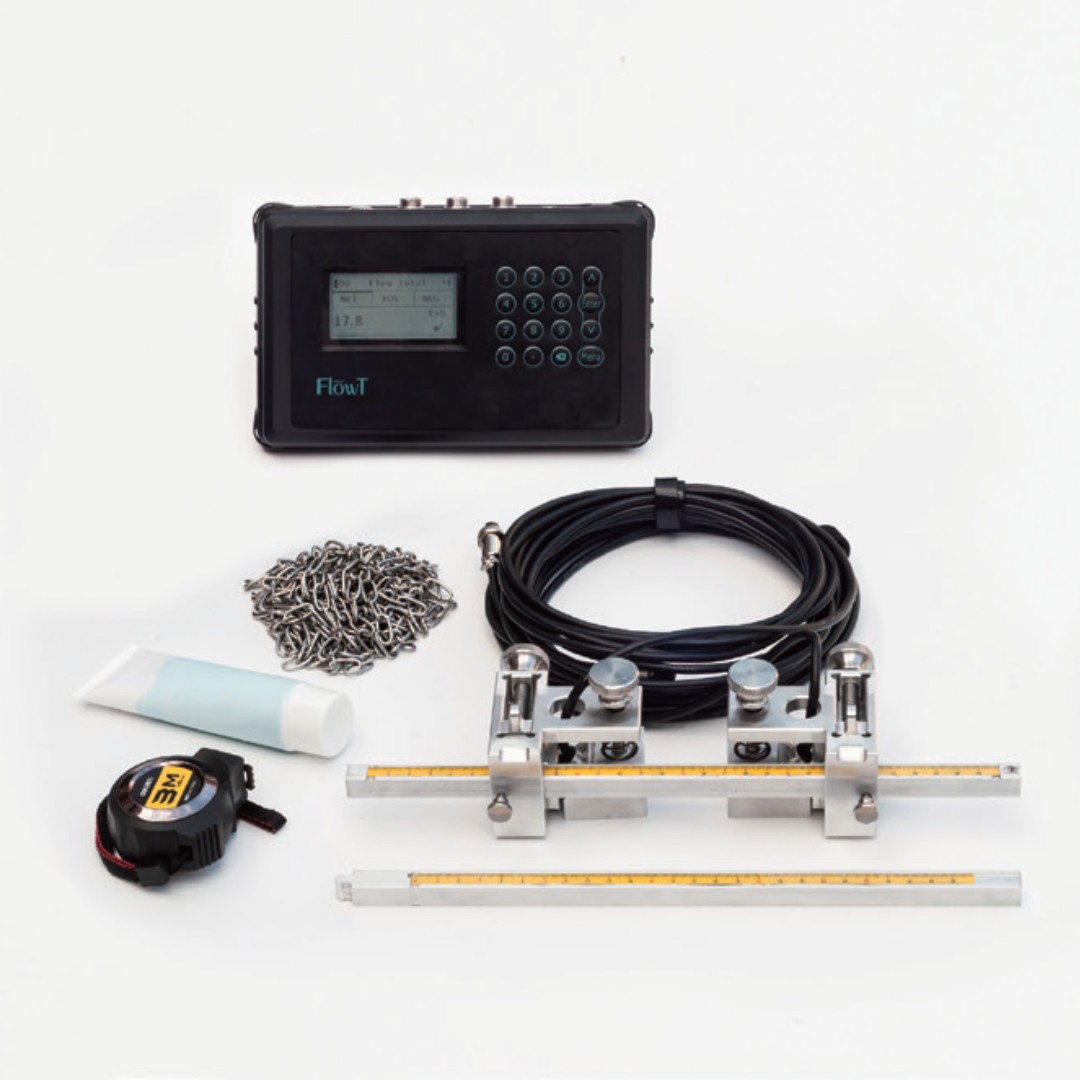

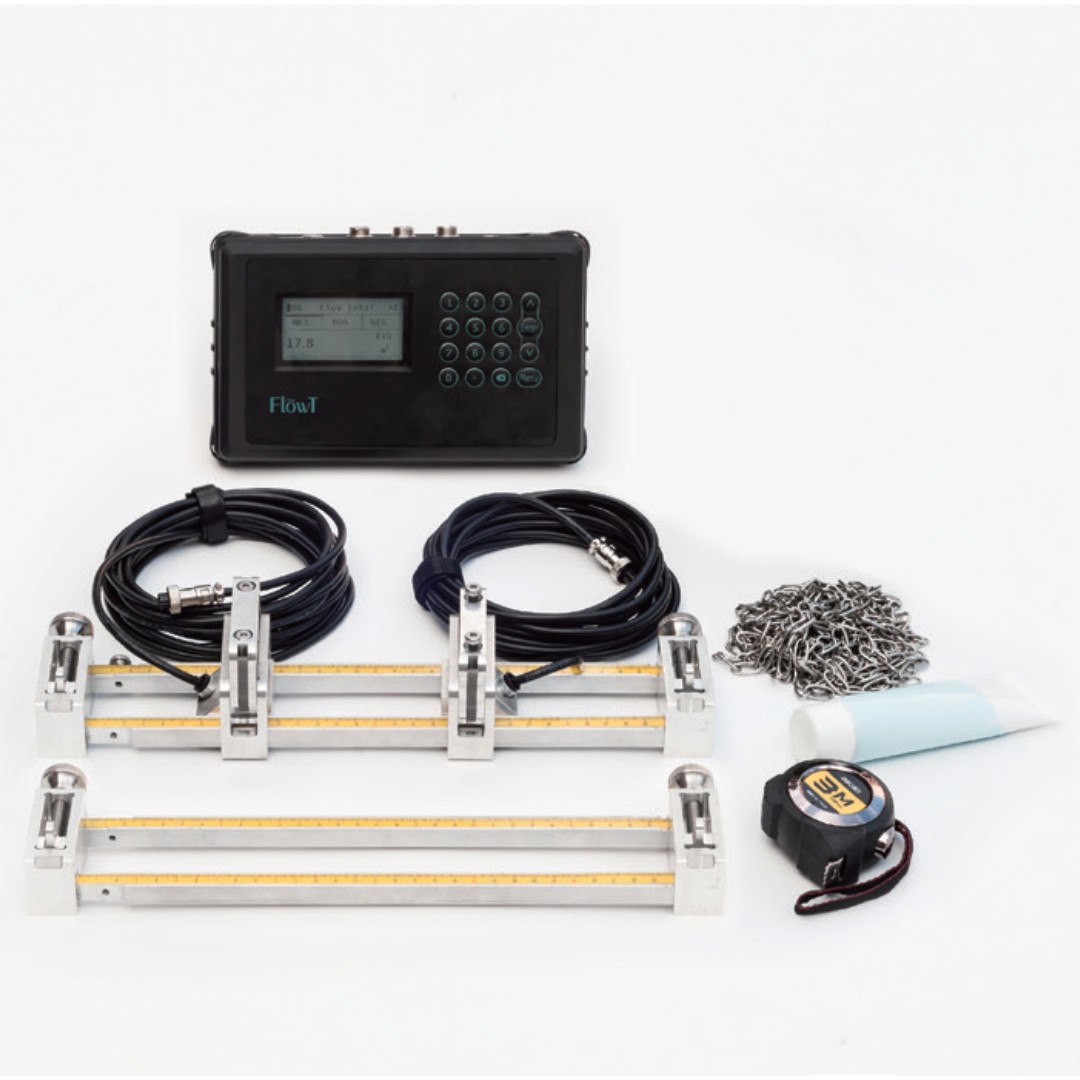

The FT221 is a full-featured hand-held, transit-time ultrasonic flowmeter. Whether you want to quickly check another meter's flow reading or log your flow system readings over a longer period of time, the FT221 is the right tool for you. The FT221 portable meter sensor has a clip that eliminates the need for tapping or cutting and simply pops out of the tube. The meter can be easily moved and installed in various pipes for easy portability in the field. Its portability makes it an excellent choice for measuring the flow of the entire pipeline infrastructure to check sensor, pump and valve performance.
Description
Download
Ultrasonic meters equipped with heat flow capability measure the rate and amount of heat transferred or removed from equipment such as heat exchangers. The energy consumption can be calculated by measuring the volume flow of the heat exchange fluid, the temperature of the inlet pipe and the temperature of the outlet pipe.

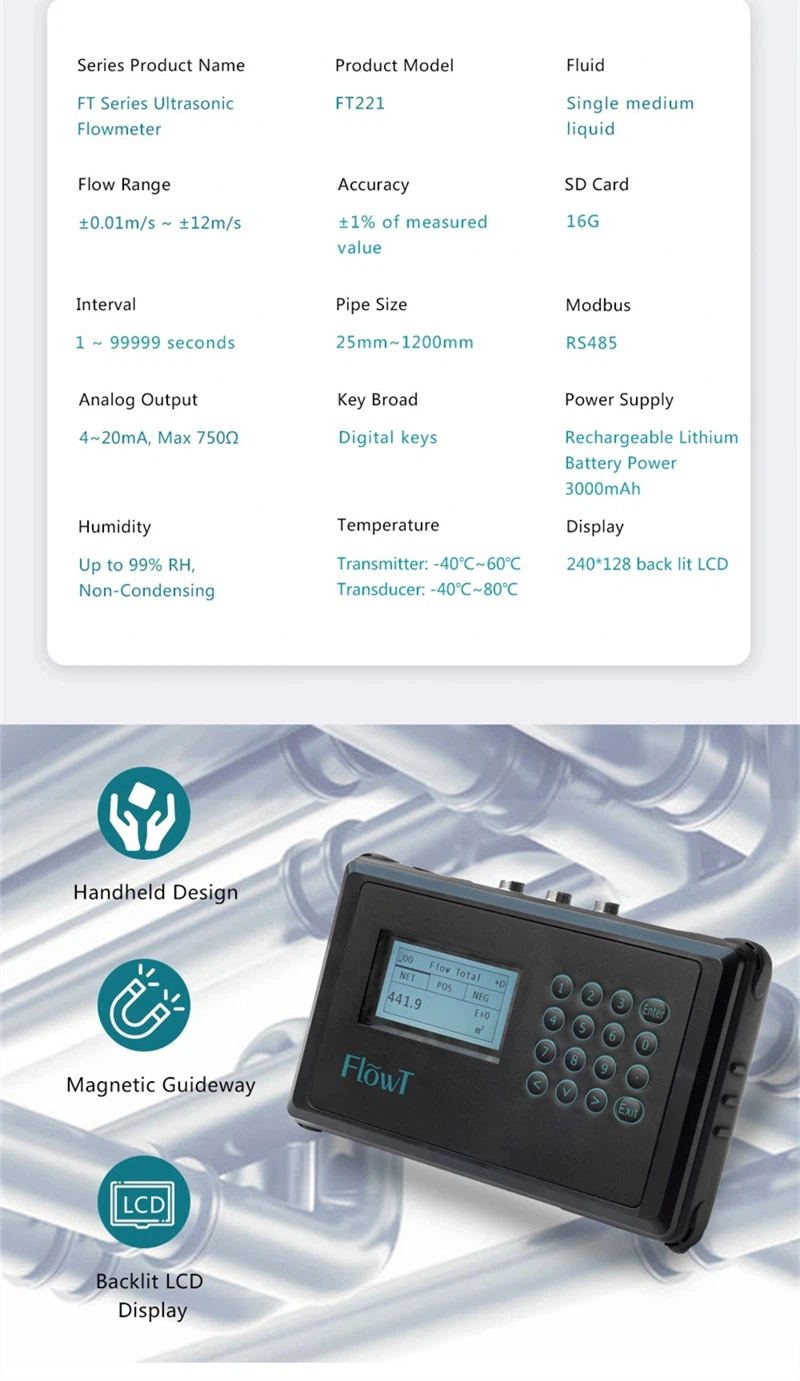

FT221 Specification
Performance Specifications
| Velocity | ±0.03 ft/s ~ ±40 ft/s (±0.01 m/s~ ±12 m/s) |
| Accuracy | ±1% of measured value |
| Pipe size | Clamp-on: 1″~48″(25mm~1200mm) |
| Fluid | Fluid Single medium liquid |
| Pipe material | Carbon steel,stainless steel,PVC and other compact material pipe |
Function Specifications
| Outputs | Analog output: 4~20mA, Max 750 Ω. Modbus: RS485 |
| SD card | 16GB |
| Interval | 1 ~ 99999 seconds |
| Key broad | Digital keys |
| Display | 240*128 back lit LCD |
| Power supply | Rechargeable Lithium Battery Power，3000mAh (Continuous operation of main battery 16 hours). |
| Temperature | Transmitter: -40℃~60℃ Transducer: -40℃~80℃ (-40℃~80℃ is standard; -40℃~130℃ is an option) |
| Humidity | Up to 99% RH,non-condensing |
Physical Specifications
| Transmitter | NEMA13,IP54. |
| Transducer | Encapsulated design,IP68 |
| Transducer cable | Standard cable length: 5m (16ft). |
