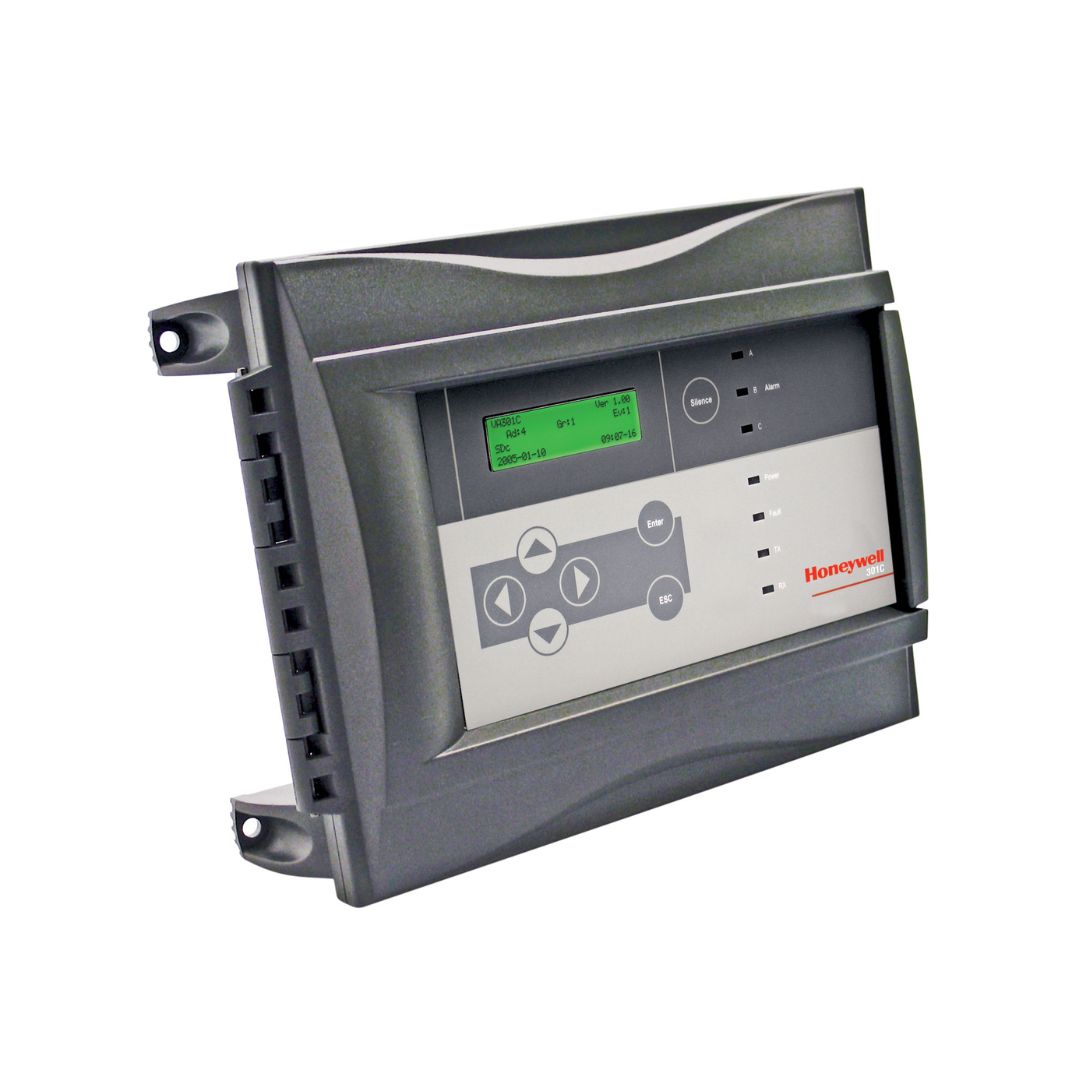

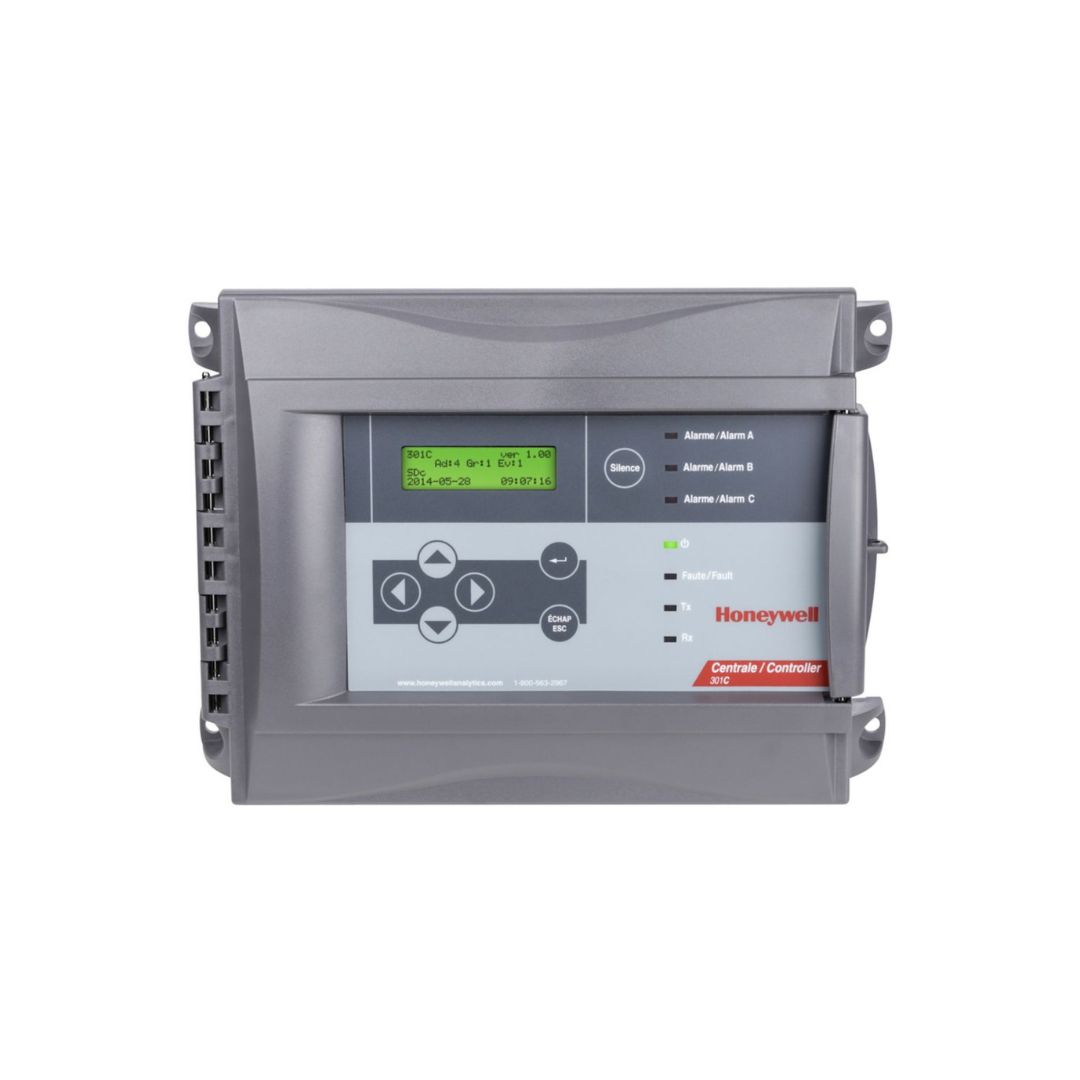

Honeywell 301C Controller
Using an addressable RS-485 Modbus communication protocol, the 301C uses daisy chain wiring requiring only 2 pairs of wires to connect up to 96 transmitters on the 3 input channels. This simplifies installation, in turn lowering costs. The 301C’s zoning and averaging abilities significantly reduce operational and maintenance costs.Zoning / AveragingThe 301C controller offers unique zoning capabilities which permit the averaging and comparison of multiple sensor readings.
Description
Downloads
Designed for simple installation and operation, the 301C continuously monitors and controls toxic gases, combustible gases and oxygen hazards.
The 301C has the capacity to manage input from three Modbus channels for up to 96 transmitters and up to 50 wireless transmitters that can be associated with up to 126 zones. Transmitters can belong to an unlimited number of zones, providing maximum operational and control flexibility.
Features & Benefits:
- User FriendlyZero maintenance
- User FriendlyAutomatic quick self-test and warm-up
- Continuous alphanumeric displayInexpensive and ReliableLow installation costs
- Allows for up to 126 zoning groups which can save energy and extend fan and relay life
- Manages up to 768 events with programmable latching alarms
- Flexible OperationOptional BACnet/IP available
- Interchangeable transmitters able to detect different gases
- Expands to handle up to 96 transmitters or relay modulesProgrammable time delays
- Integrated time clock enables scheduling of system operations
- Safety MeasuresFull array of visual indicators and integrated 65dBA alarm levels
- Fully programmable relays (can be set as fail-safe or not)Beneficial Options
- Available in a heavy-duty industrial housing
- Datalogging option
Quick Specs:
- Power requirement: 17-27 VAC, 24-38 VDC, 500 mA
- Size: 11 (W) x 8 (H) x 2.8 (D) in. (28 x 20.3 x 7 cm)
- Weight: 2.4 lbs. (1.1 kg)
