Honeywell Balanced Hydronic Valves (1/2 Inch, 2 Way) VC4013AF1000T
SKU: VC4013AF1000T
S$100.00Price

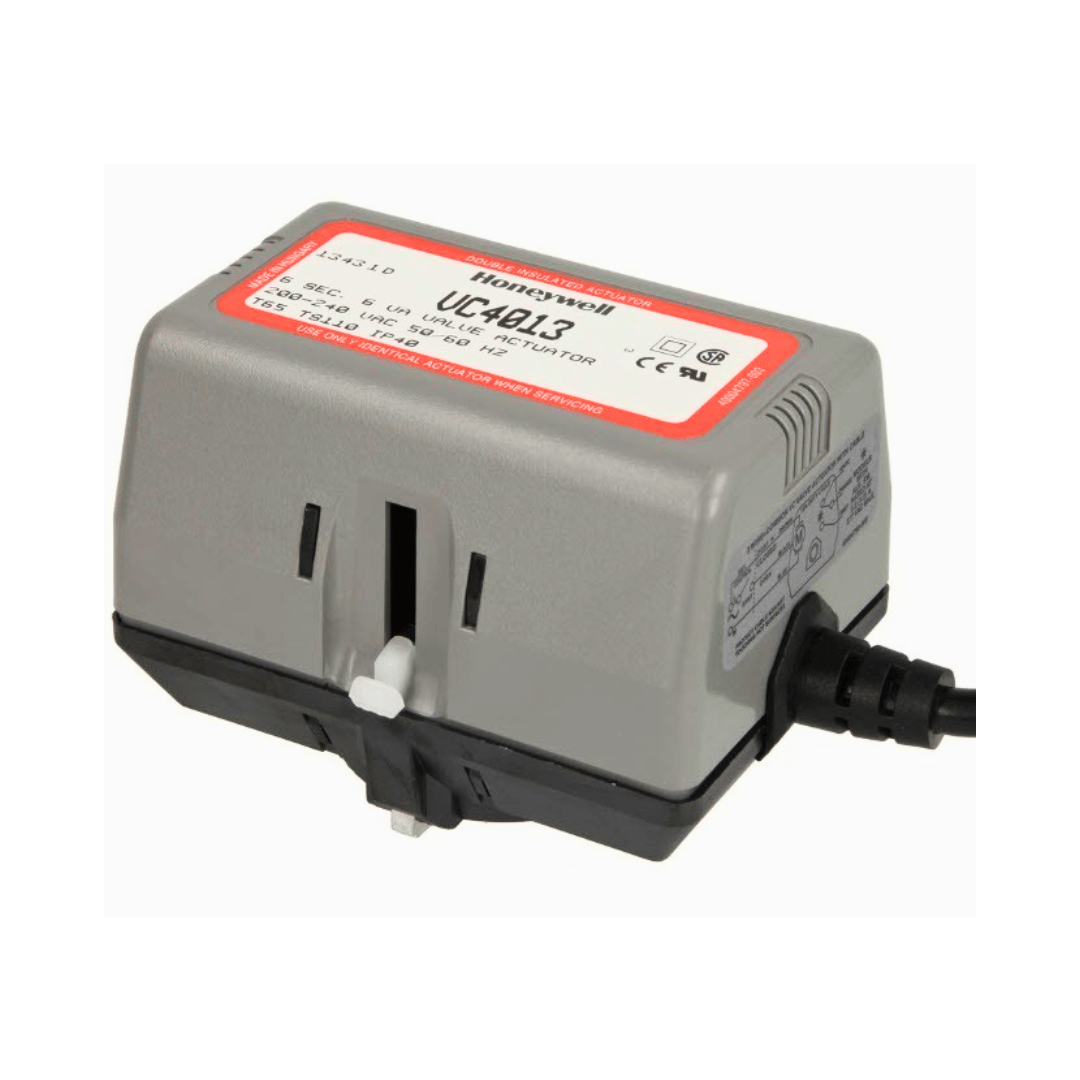

These 2-position (open/close) control actuators are used with VCZ 1000, 1100, 6000 and 6100 series hydronic valves in a normal indoor environment to provide quick opening/closing to control the flow of hot and/or chilled water or glycol solution to 60% concentration.
They are designed for on-off "zone" control of heating/cooling systems, or to control individual fan coil, baseboard radiator or convector applications.
Depending on the model selected, the actuator can be controlled by a low or line voltage SPST or SPDT controller, such as a room thermostat, aquastat or flow switch.
Description
Download
Features:
- Use with two-way or three-way valves.
- Minimal actuator power consumption.
- Quick-connect or one meter cable electrical connections available.
- Quick and easy replacement of moving parts.
- Actuator head installation does not require draining the system.
- On/Off models with six second nominal timing
- Use two-position actuators with 1000 Series 2 way and 6000 Series 3-way VC valve bodies only.
- All VC Series actuator-valve combinations provide 60 psi close-off.
Application:
- The VC series balanced hydronic valves allow greater control of hot and/or cold water flow.
- The VC series balanced hydronic valves are designed for both domestic boiler heating and domestic cooling applications.
