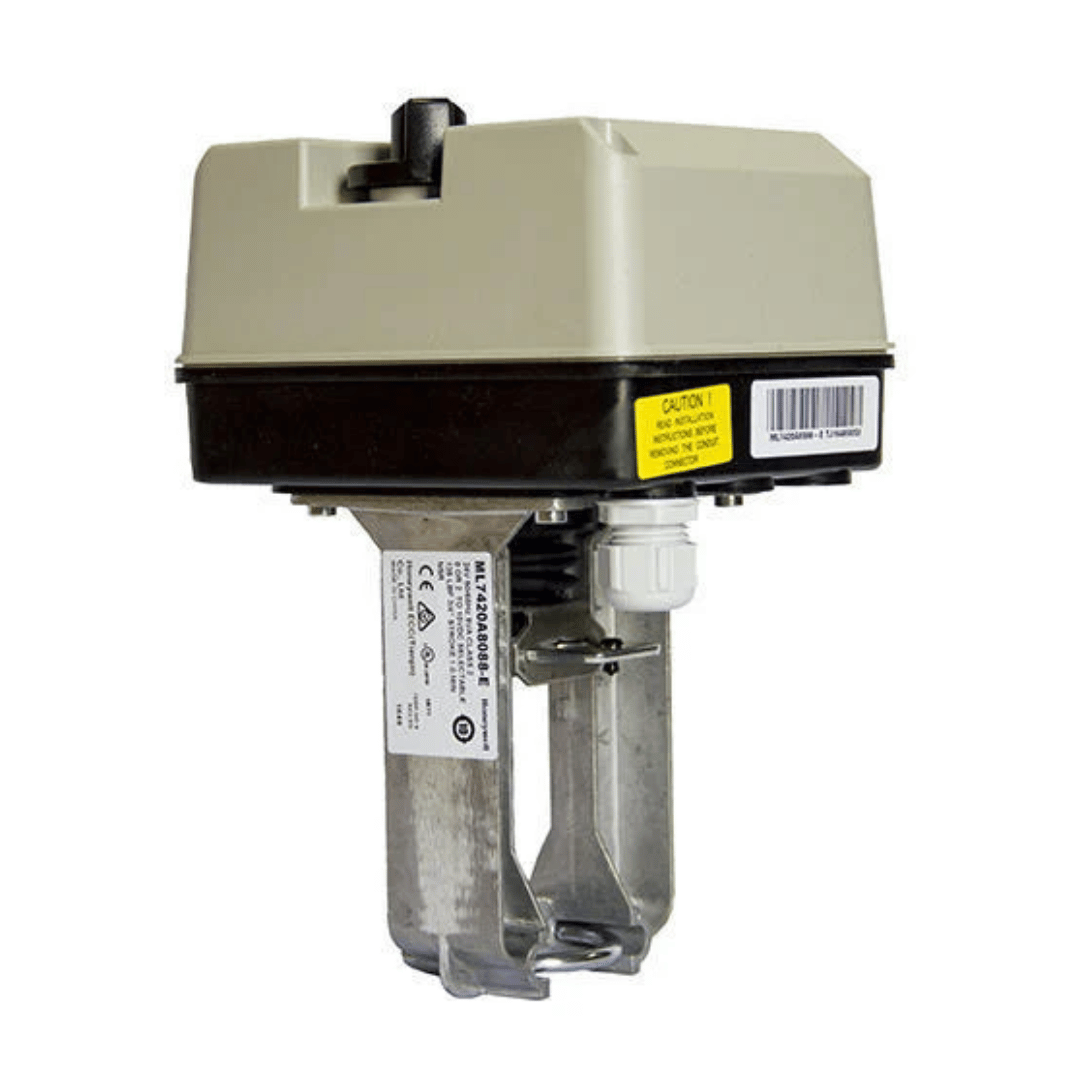

Honeywell Electric Linear Valve Actuator (24Vac 50/60Hz, 600N, 20mm)
The ML7421A,B Non-Spring Return Electric Linear Valve Actuators are modulating control actuators used with controls that provide an analog output of 0 to 10 Vdc or 2 to 10 Vdc. These actuators operate standard Honeywell valves in HVAC applications. An internal selector plug can be used to reverse the direction of action.
Description
Download
Features:
- Easy and quick installation
- No separate linkage and adjustments required
- Low power consumption
- Force-limiting end stops
- Manual operation knob 0(2)~10 Vdc or 0(4)~20mA input signal selectable
- Position feedback signal Direct/ Reverse action adjustable
- Stroke position on signal failure selectable
- Corrosion-resistant design
Maintenance-free Application:
The ML7421A / ML7421B actuators are designed for modulating control with controllers providing an analog output of 2...10 Vdc.
They operate Honeywell’s standard valves in heating, ventilation, and air conditioning (HVAC) applications.
Honeywell ML7421A3004 Honeywell ML7421A, B non-spring return electric linear valve actuators provide an analog output of 0 to 10 Vdc or 2 to 10 Vdc. An internal selector plug can reverse the direction of action. They operate standard Honeywell valves in HVAC applications.
Features:
- Quick, easy installation on valves with 1 3/8-in. bonnet and 3/4-in. stroke, or with 1 7/8-in. bonnet and 1 1/2-in. stroke
- No separate linkage required and no adjustments required on linkage
- High force for VGF pressure-balanced valves and accurate valve positioning
- Low power consumption and high close-off ratings
- Force limiting end switches and manual operation
- Synchronous motor Maintenance free
