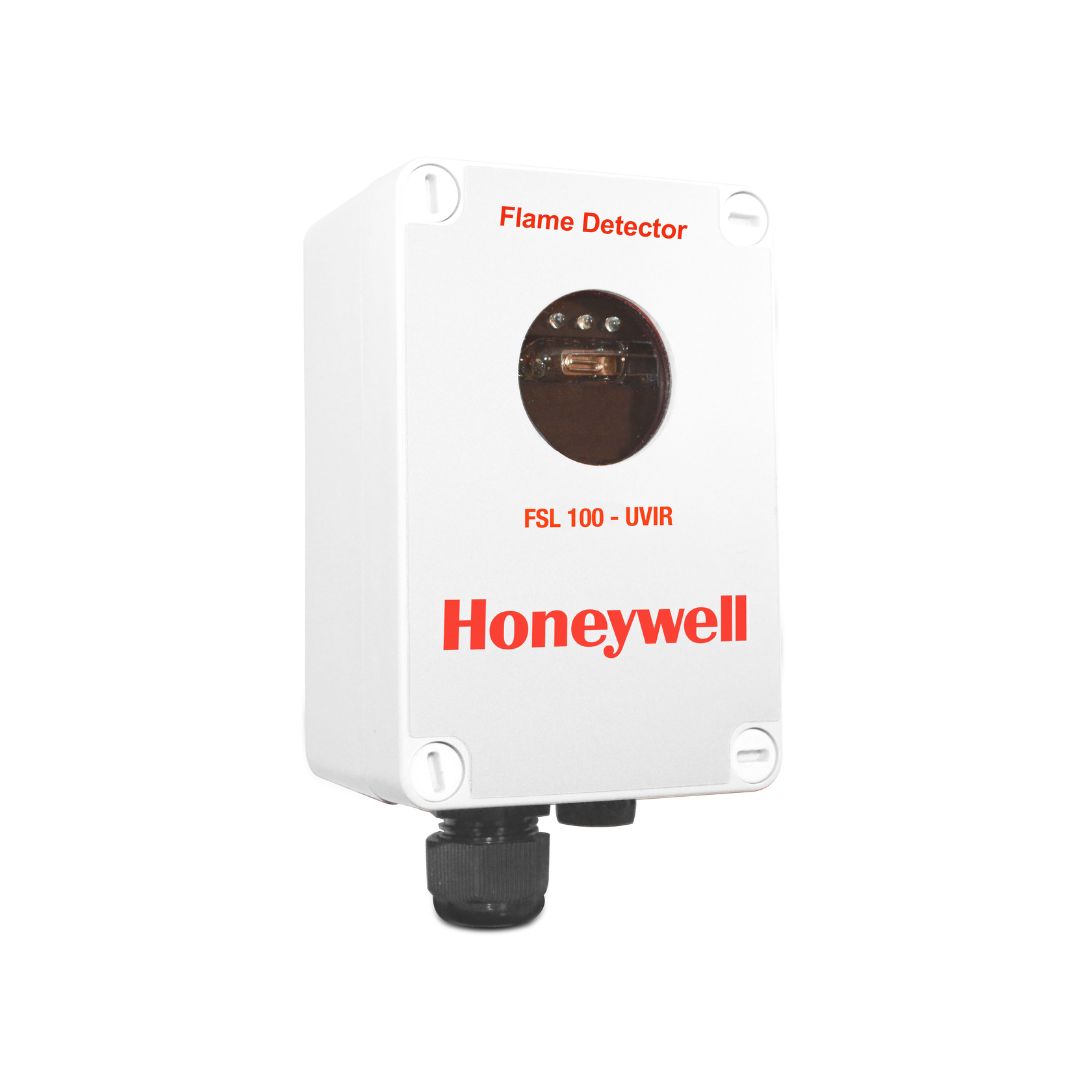

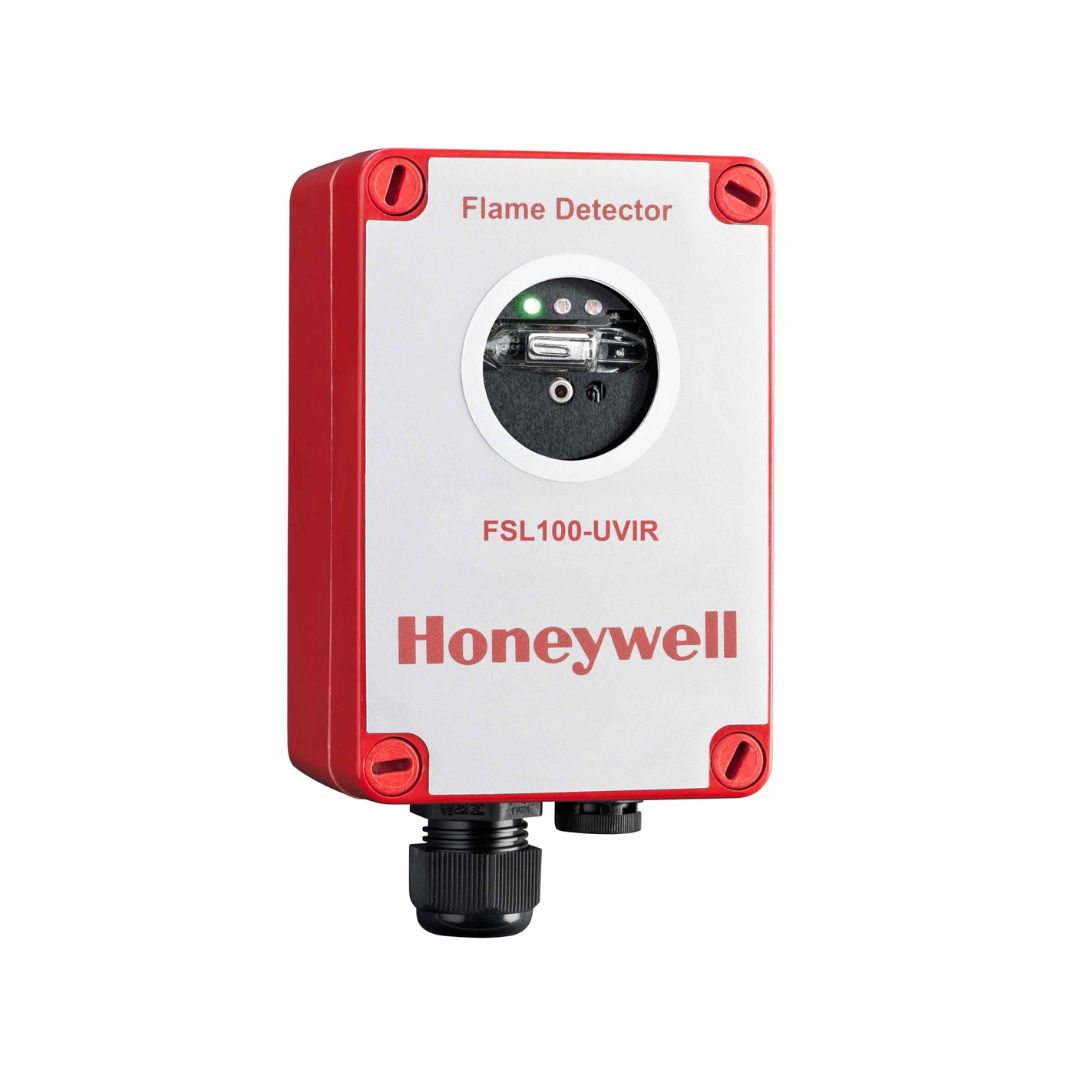

Honeywell FSL100 Flame Detectors

Honeywell FSL100 Flame Detectors

SKU: 2853
The newest Optoelectronic flame detector for a wide range of Light Industrial fire detection from Honeywell Analytics.A range of middle market Optical Flame Detectors joining the HA FSX High End products. Addresses a wide range of fire protection applications both indoors and outdoors. With 3 versions to cover a wide range of flaming fires: Ultraviolet (UV), Ultraviolet/Infrared (UVIR) and Triple Infrared (IR3).

Honeywell’s FSL100 range of Light Industrial/Commercial Flame Detectors enables simple coverage of fire hazard areas across many fire hazard applications.

Installation, set-up and operation are simple. Wide solid area coverage and fast speed of response omtimise safety.

With inbuilt automatic test and test lamps available to cover all models, reliability is ensured.

Features & Benefits

  • Suitable for Many ApplicationsUV, UVIR and IR3 available
  • Hydrocarbon and non-hydrocarbon sources
  • Use in potentially explosive atmospheres
  • Indoor and outdoor operation
  • Great Performance
  • Approved to EN54-10 and FM3260 flame detector standards
  • Fast Reliable High speed sensors and microprocessor
  • Sophisticated and analysis algorithms
  • Continuous health monitoring
  • False alarm rejection
  • Reduced Life Cost
  • Long life elements
  • Pressure compensation to avoid contamination
  • 2 year warranty
  • Buy with confidence
  • Ease of Installation and UseRelay and mA outputs as standard
  • Lightweight GRP housing
  • Pre-formed knockouts
  • Optional swivel mounting bracket
  • Long range test lamp available
  • Detects wide range of Hydrocarbon & Non-Hydrocarbon fires
  • Detecting a wide range of Hydrocarbon and Non-Hydrocarbon flaming fires means that many application areas can be addressed.
  • Wide viewing angle
  • Optical detection of radiant energy in a solid angle Field of View enables coverage of a large risk area.
  • Simple optional mounting bracket allows the FSL100 to be installed and aligned covering the hazard.
  • Fast response
  • Far faster than other technologies, by responding to flaming fires in seconds enabling a more rapid response to danger before the fire can escalate.
  • Hazardous Area ATEX Zone 2/22, FM Class1, 2 & 3 Div2Can be installed indoors or outdoors and in Hazardous areas typically looking into a Zone 1 area from a distance.
  • FM 3260 and EN54-10 performance certs
  • Certified to FM 3260 and EN54-10 for flame Detector performance.Relay and current output (Fault and Alarm)Analogue stepped output and Alarm/Fault relays for simple connectivity.
  • Inbuilt  Automatic Test and Simple to use Test Lamps FSL100 maintains continuous internal health monitoring.
  • Test lamps enable simple operational and Field of View testing.

Quick Specs

FSL100 Flame Detectors - UV, UVIR and IR3 for light industrial applicationsGRP Housing, available in Red or White with optional swivel mount12-14Vdc, 25mA nominal operation4 to 20mA and Relay outputs.

$0.00Price
