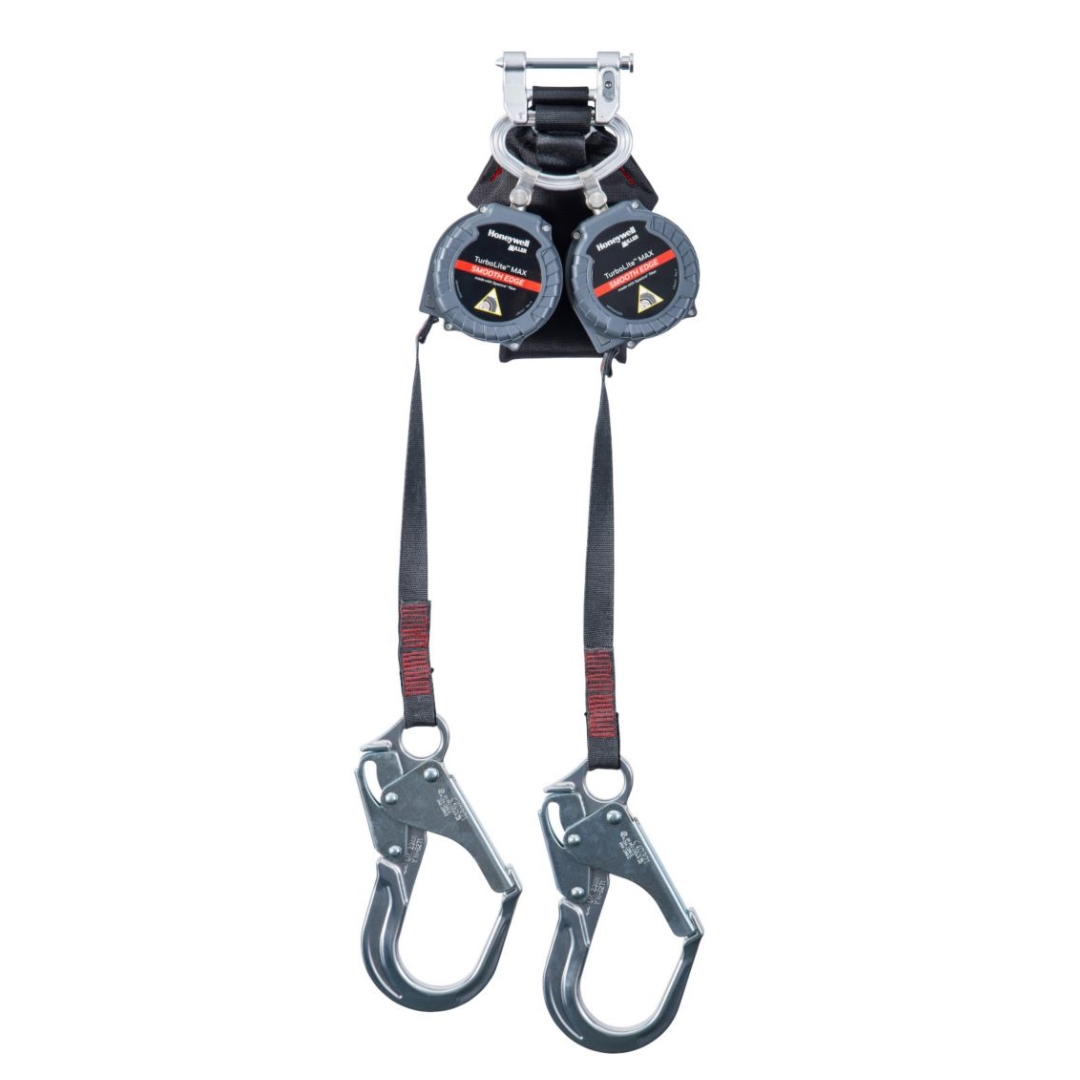

The TurboLite Edge MAX is a Personal Fall Limiter designed for use in smooth edge applications with radius ≥ 0.060 in (1.5 mm). It is equipped with an easy to install shock-absorbing connector system and abrasion-resistant Spectra® webbing lifeline. Both single and twin configurations are available in 6 ft, 9 ft and 12 ft lengths with a variety of connector options.



MATERIALS

• Shock Absorber Cover: Ballistic nylon
• Harness Connector: Anodyzed aluminum
• Housing: High impact nylon
• Hub: Nylon and aluminum
• Braking Mechanism: Stainless steel
• Lifeline: Honeywell Spectra® webbing



TECHNICAL

• Edge Radius: > 0.060 in (1.5 mm)
• Max. Working Load: 420 lb (190.5 kg)
• Working Length: 6 ft (1.8 m), 9 ft (2.7 m) and 12 ft (3.7 m)
• Max. Arrest Distance: 42 in (1.1 m) (When tested to ANSI Z359.14 for overhead use. Minimum clearance required for over-edge applications: 14-20 ft (4.3-6.1 m) for 310 lb user; 16-22 ft (4.9-6.7 m) for 420 lb user.
• Avg. Arresting Force: 900 lb (4kN) (when tested to ANSI Z359.14)
• Max. Peak Arresting Force: 1800 lb (8kN) (when tested to ANSI Z359.14)
• Min. Ultimate Strength: 3,000 lb (13.34 kN)



CERTIFICATIONS

Meets OSHA 1926.502, ANSI Z359.14, Class B and CSA Z259.2.2 requirements.
