InnovaMass 240 and 241 Multivariable Mass Vortex flow Meter
SKU: 679
S$0.00Price
Both the 240 and 241 measure the mass flow rate of any gas or liquid and are ideally suited for saturated or superheated steam. The InnovaMass offers customers one instrument and one process connection, measuring five process parameters simultaneously: mass flow rate, temperature, pressure, volumetric flow rate, and fluid density.
Description
Download
Features:
- Mass and volumetric flow measurement of gas, liquid, and steam
- Multivariable outputs for five process parameters: mass flow rate , volumetric flow rate, temperature ,pressure ,density

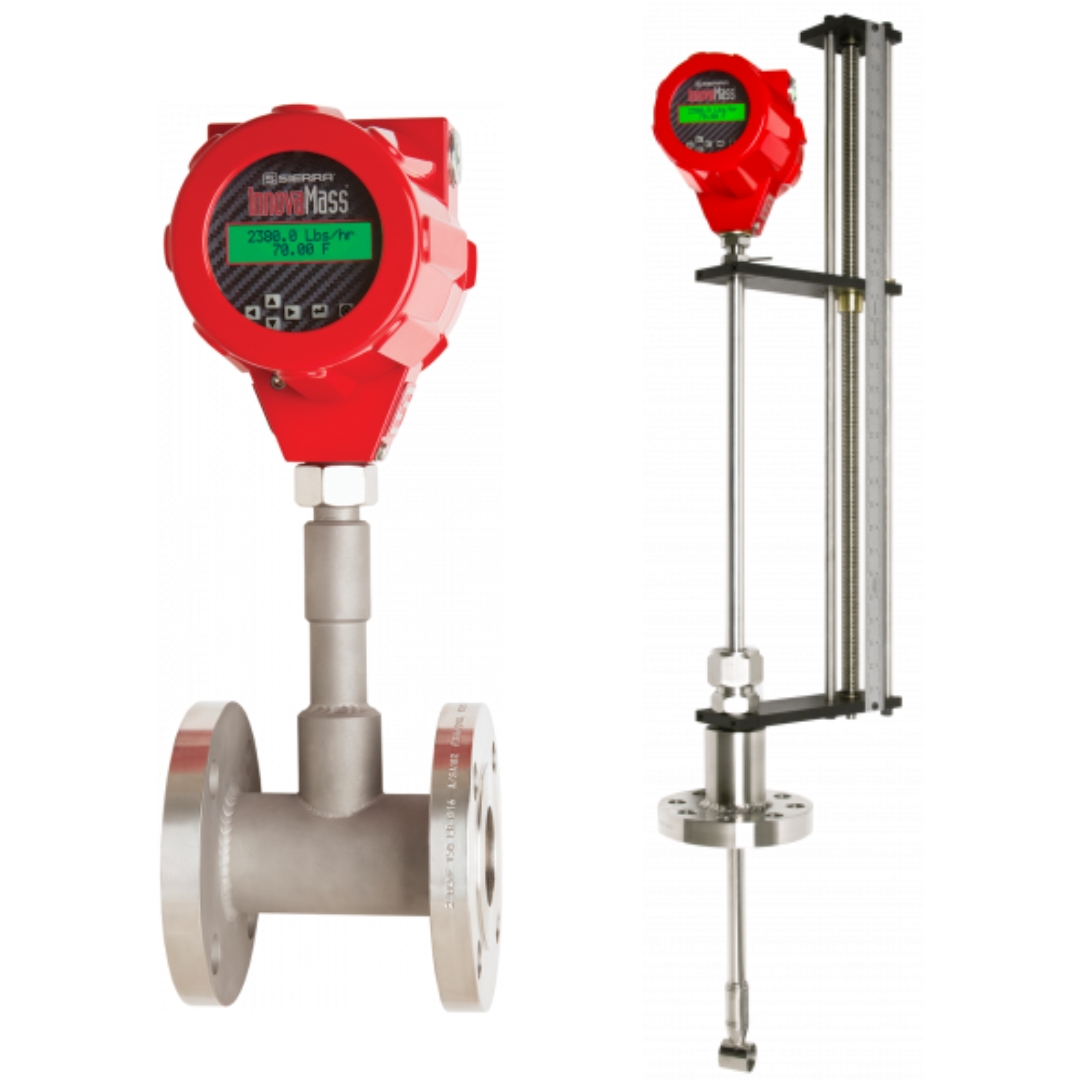

- Single process connectionIn-line (1/2 inch to 8 inch) and insertion (into pipes > 2 inch) configurations
- Field-configurable ranges, alarms, outputs and displays

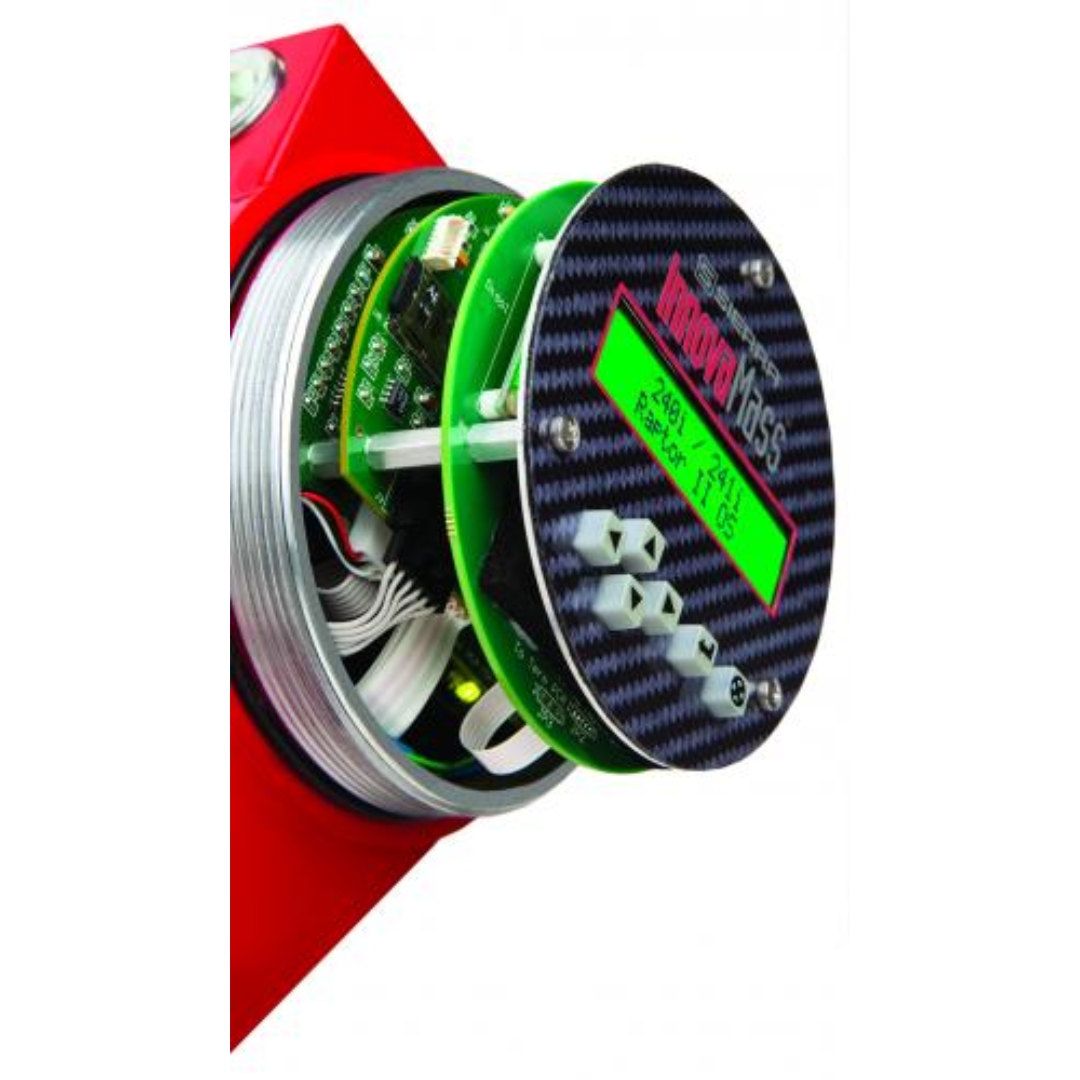

- Field configurable via six push buttons or magnet through explosion-proof window
- Smart DSP electronics extends low flow range down to a Reynolds number of 5000
- Rangeability up to 30:1Temperature -330°F (-200°C) up to 750°F (400°C)
- Cryogenic version measures liquid O2, N2, Ar, and CO2 down to -330°F (-200°C)
- Pressure up to 1500 psig (100 barg)
- High pressure version to 5000 psig (345 barg)
- Ideal for steam applications
- Flow computer integrates AGA-8 equations for natural gas
- Supports HART, Modbus and BACnet digital communication protocolsFMC and ATEX approval
