Features:

Carbon steel and SS AISI304/316 body material

ND 25 to ND 1800 nominal diameter

0…91000 m3/h flow rate

PN 16 nominal pressure

100 °C max liquid temperature (non for PP & ebonite lining)

PP, PTFE and ebonite lining material

Wide choice of electrodes material

Accuracy and repeatability data are according to the chosen converter



Benefits:

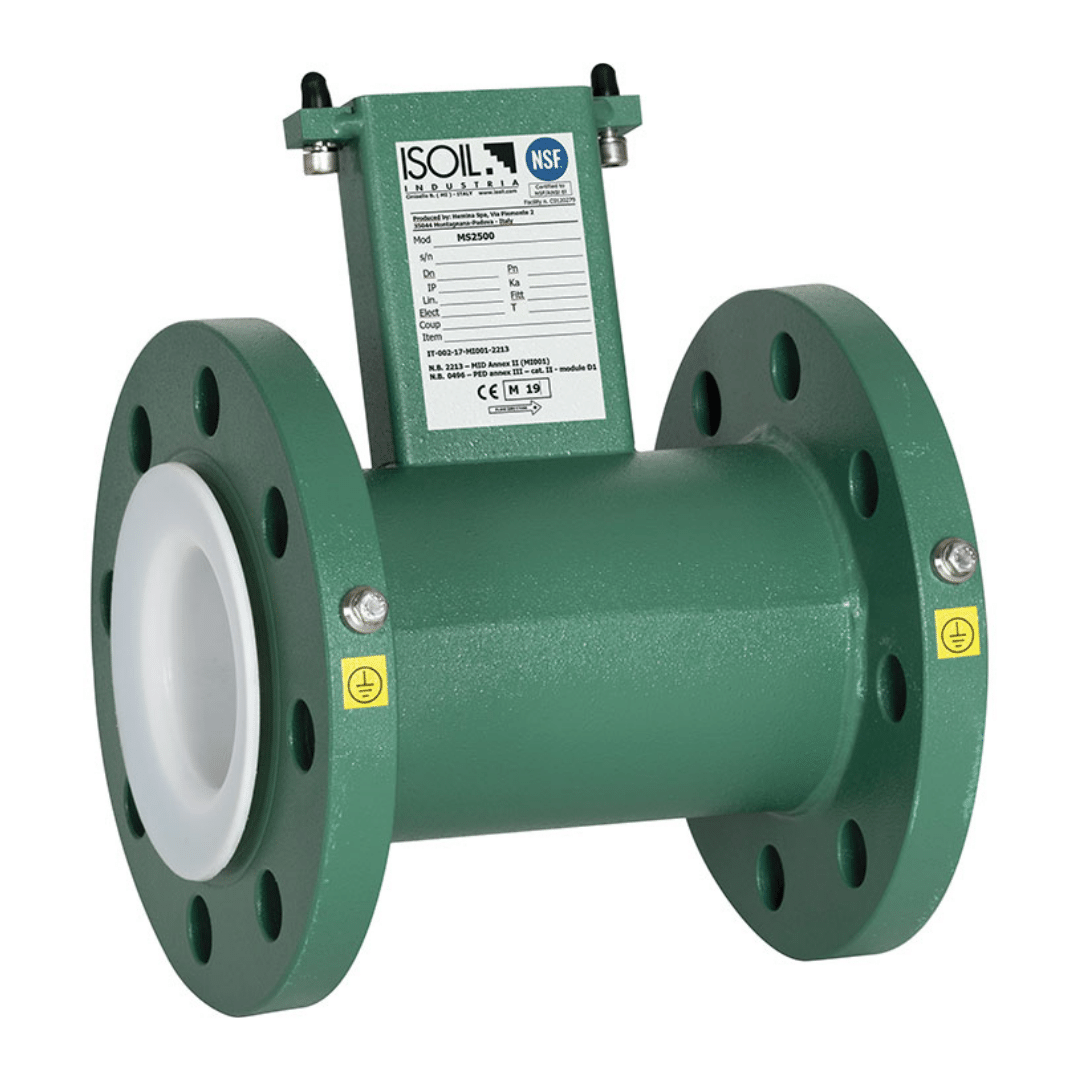

• MS2500 Flanged Sensor for Electromagnetic Flow Meter has the widest flow ranger to fit for all types of industrial applications. This entails that ensuring a good fit for your equipment will not be a problem.



• Relatively low maintenance due to the inner measuring tube made from stainless steel and the outer tube made from carbon steel when welded together creates a hermetic seal to protect the sensor from various hazards.



• Its versatility offers a wide range of industry applications including agricultural, mining, baths and pool equipment, manufacturing of machinery, textile industry, water treatment, waste management and more.
