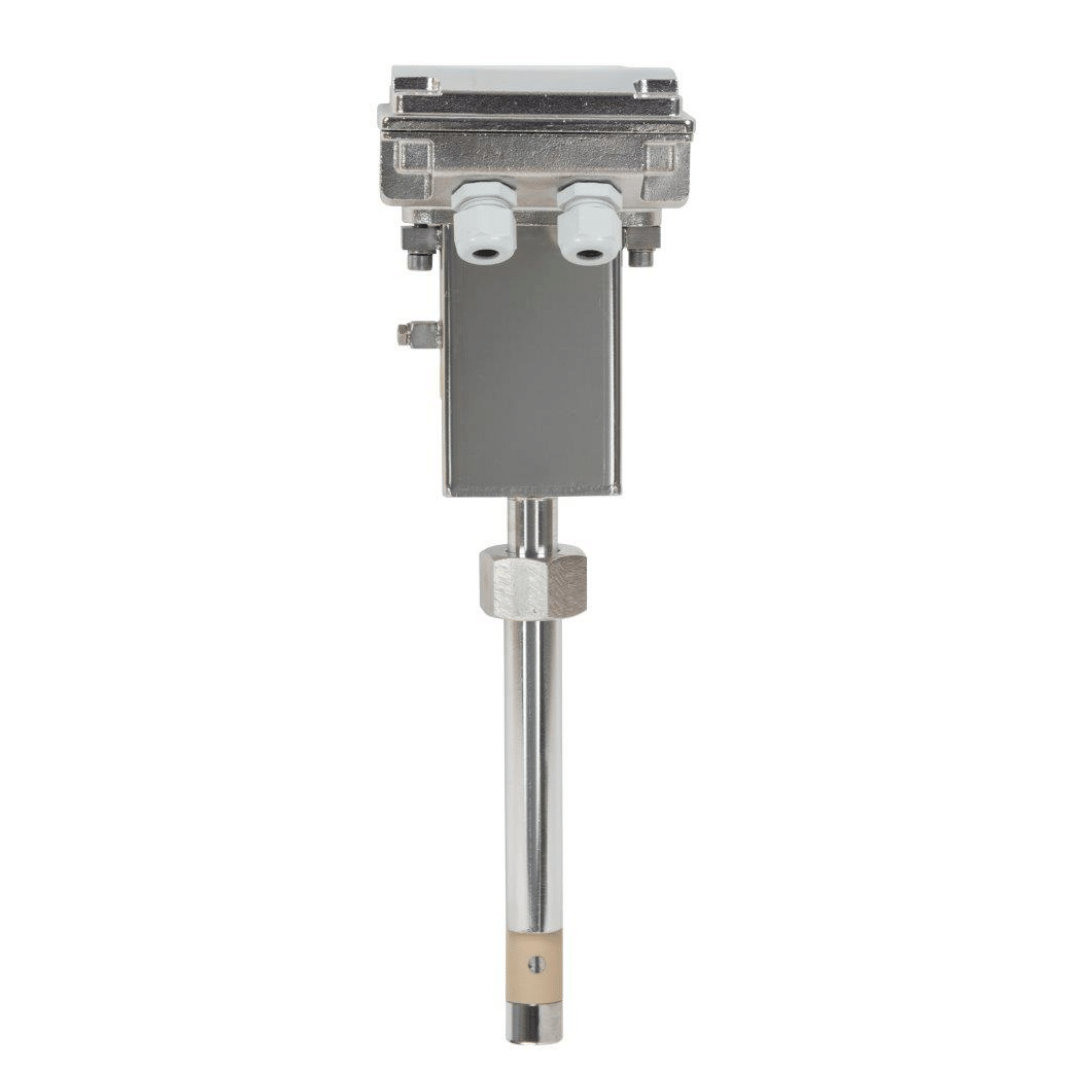

Isoil MS3780 Insertion Magnetic Flow Meter
SKU: MS3780
S$0.00Price
The MS 3780 ‘insertion’ magnetic flow meter is suitable for mounting in non-pressurized pipelines with a diameter range from ND 80 to 2000 mm. It is ideal for the pipe lines monitoring and in the HVAC market.
Description
Download
Features:
- Sensor material: SS AISI316
- Wide choice of pipe diameters
- Nominal pressure: from PN 16 (other on request)
- Process connections: threaded br>
- Liquid temperature: from -20 to 100°C (130° for separate version)
- Lining materials: PEEK Electrodes materials:
- Hastelloy C276 Accuracy: +/- 2% of the read value (whatever converter is used)
