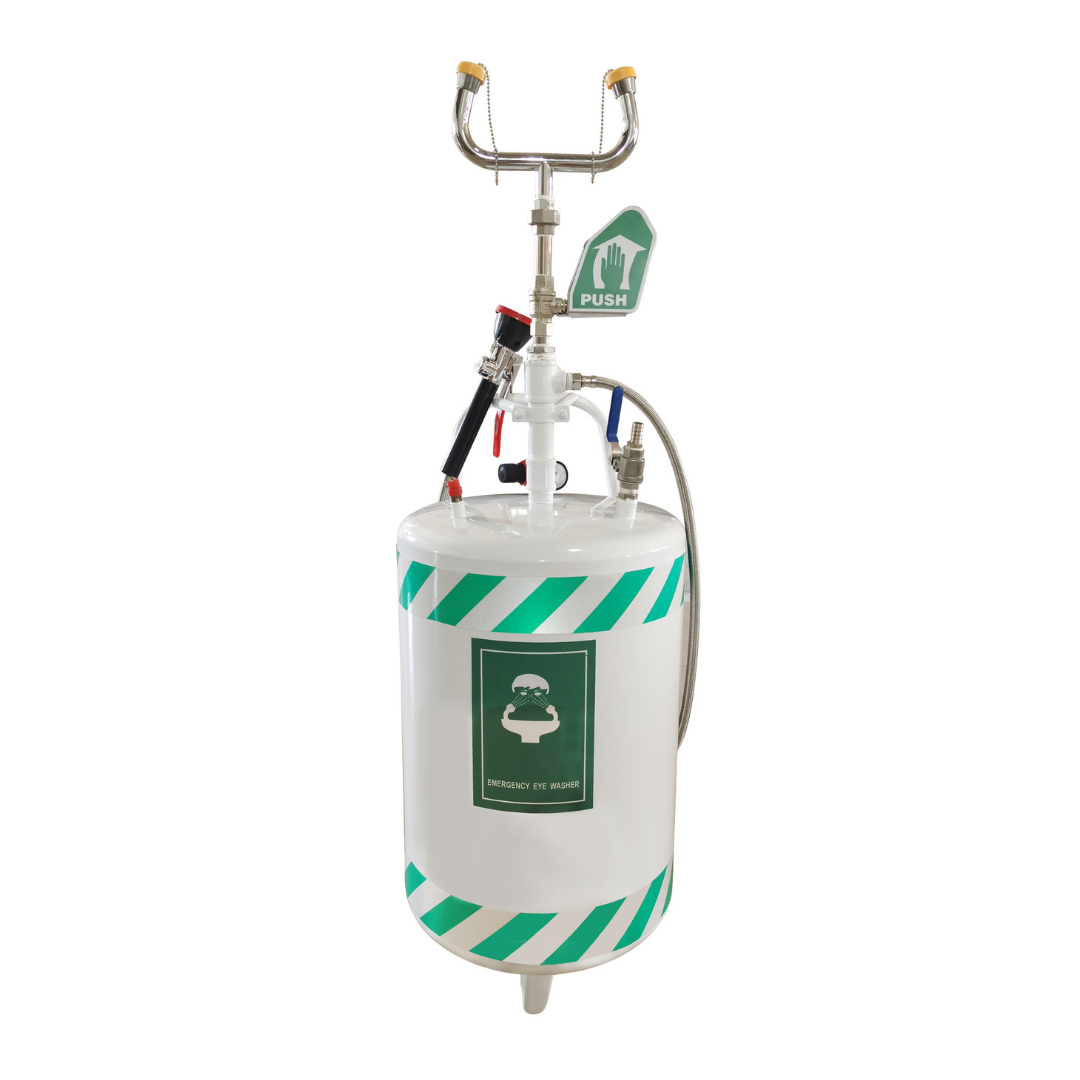

OSS Mobile Self-Contained Eye Wash, D100
Ocean Safety Supplies (OSS)Mobile Self-Contained Eye Wash-D100
Manufactured in according with ANSI Z358.1-2004 which cover from material,height, to flow volume and spray area etc.
Mobile – Ergonomically designed with two spray heads. Height and angle of the heads which are based on the face proportion to provide the most comfortable using feels.
Made by 304 stainless steel. Small size and light weight. Good Anti-corrosion performance. Easy to operating and maintenance
Description
The working procedure will be as below:
Step 1: fill water in (there will be a marker on the water level gague to indicate where will be the proper water level)
Step 2: fill air in and the internal pressure stable at proper pressure- 3MPa(Test pressure will be 4.5MPa, To ensure the pressure won’t bigger that the proper level, We’ll pre-adjust the safety valve and it will activate to release the over pressure)
Step 3: Move it to working area. Ready for using(push eye wash plate for eye/face washing, pull hand lever to turn on the shower)
Step 4: When water capacity running low, release all air out and repeat Step 1,2
Short Description:
- MOQ: 1 Set
- Material & Fittings: Stainless Steel 304 with safety strips
- Tank Capacity: 60L
- Water Capacity: 40L (Work Time 15 Min accoring to ANSI Z358.1-2014)
- Flow Control 2.6L/Min
- Activation by: Hand Push Plate
- Standard/Certification:ANSI Z 358.1-2014, EN15154.1/2:2006
- Warranty: 3 Years for manufacturer defects
- Packing Method:60 x 60 x 90cm
- Gross Weight: 13kg
Model : D100
- MOQ: 1 Set
- Material & Fittings: Stainless Steel 304 with safety strips
- Tank Capacity: 60L
- Water Capacity: 40L (Work Time 15 Min accoring to ANSI Z358.1-2014)
- Flow Control 2.6L/Min
- Activation by: Hand Push Plate
- Standard/Certification:ANSI Z 358.1-2014, EN15154.1/2:2006
- Warranty: 3 Years for manufacturer defects
- Packing Method:60 x 60 x 90cm
- Gross Weight: 13kg
Available on backorder
