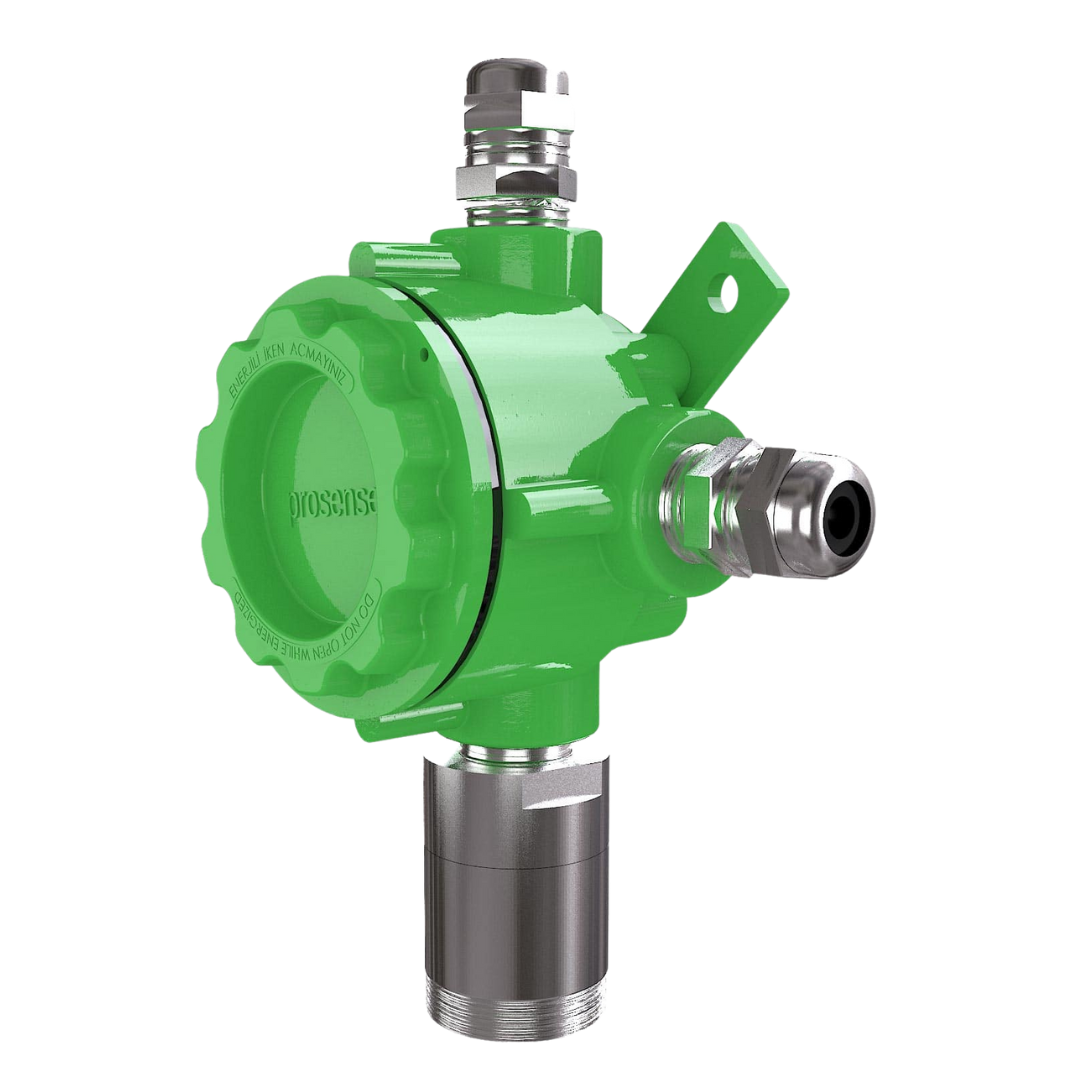

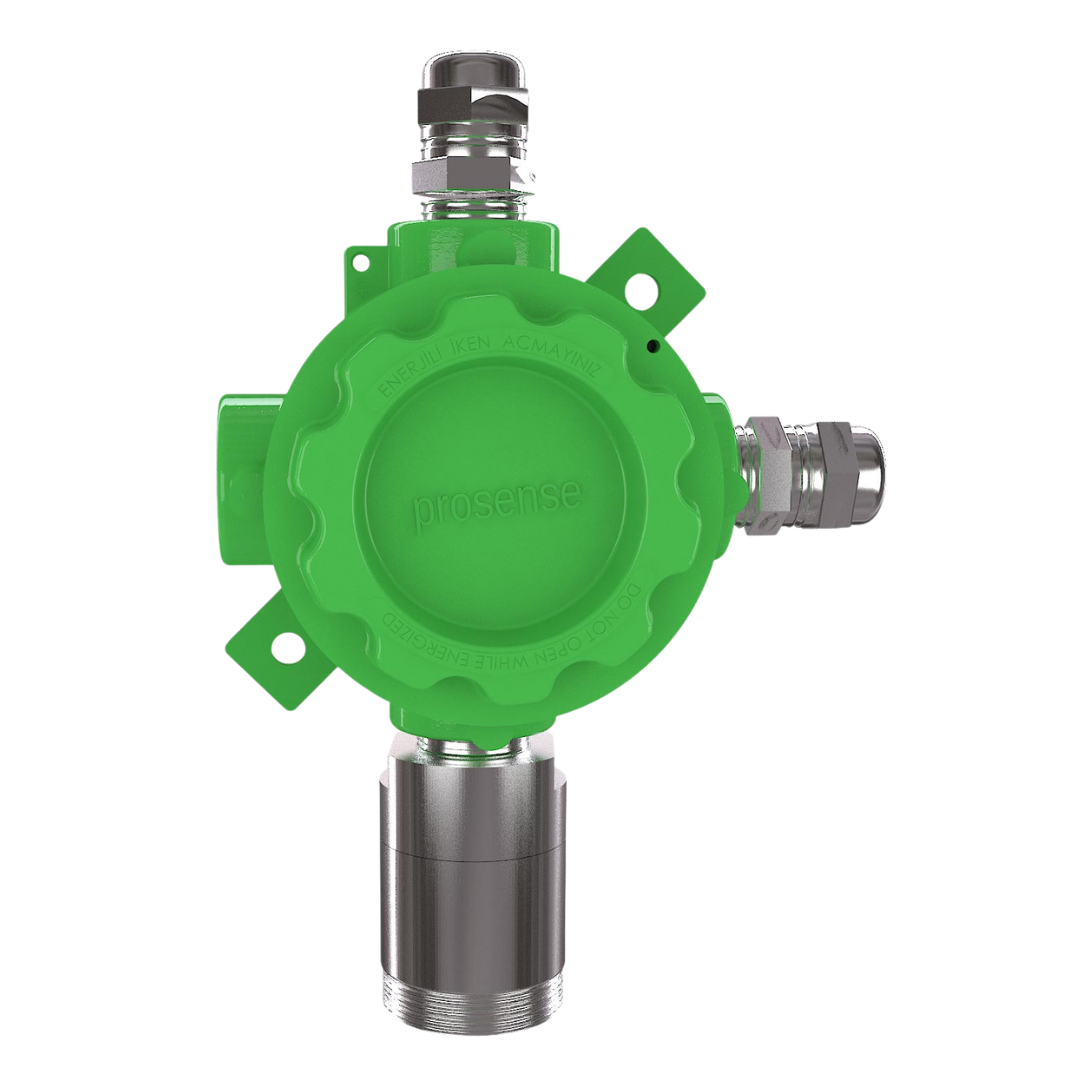

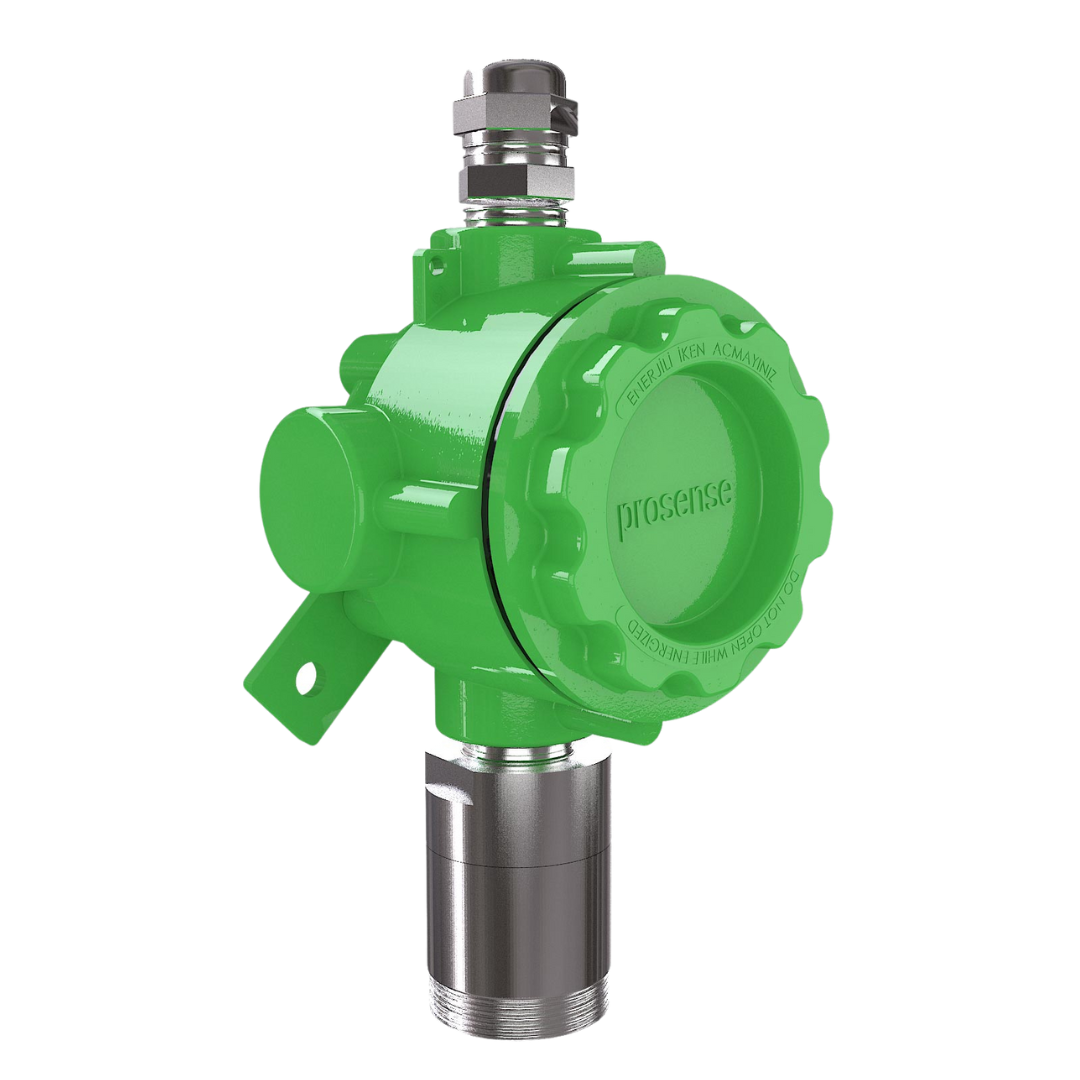

Prosense P Series Gas Detector

Connectivity

• Wide Range Sensors: Pellistor, Electrochemical, Infrared, Semiconductor employed P provides excellent output for the target gas.

• Modbus: P can be integrated to SCADA systems easily via open source Modbus RS485(RTU) codes

• Outputs: Different devices can be operated/controlled at the same time thanks to the 4-20mA analog, Modbus RS485 and Relay outputs

• Relay Contacts: P-3R+ relay module integrated P Series detectors can manage other equipments or link to firefighting panels.

Maintenance and Installation

• Sensor Replacement: Allows sensor replacement with pre-calibrated sensor head to provide easy maintenance.

• Installation: Designed for either wall or ceiling mounting applications

• Entry: 2 x 1/2″ NPT cable entries

• Remote Control: Detector status can be monitored Prosense Gas Monitoring software remotely.



Robust and Reliable

• Body: Aluminium die-cast body and SS316 stainless steel sensor head superb performance under harsh environmental conditions with IP65 protection class.

• Protection: Sunshield and waterproof caps are available for use in extreme conditions.



Specifications

• Pellistor(Catalytic),Electrochemical,Infrared Sensor Options

• Standard 4-20mA Output

• Standard RS485 Modbus(RTU) Interface

• Optional Relay Outputs (Alarm1, Alarm2, and Fault)

• Die-cast aluminium enclosure

• Stainless Steel Sensor Housing

• 1/2'' NPT Cable Gland

• IP65/ IP66

• Suitable to operate in Zone 1- Zone2

• ATEX, IECEx Certified

• ATEX Marking: Ex II 2G Ex db IIC T6 Gb
