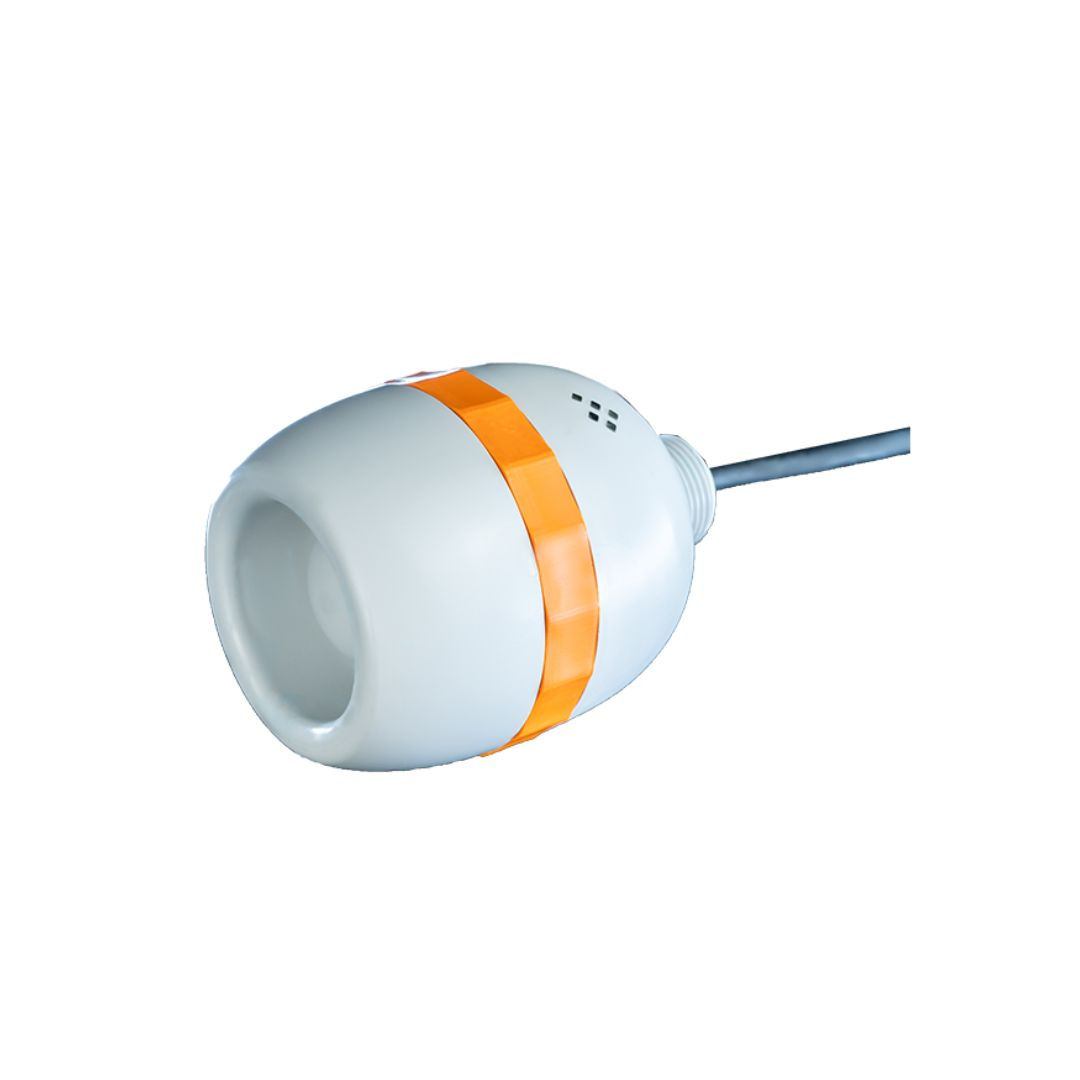

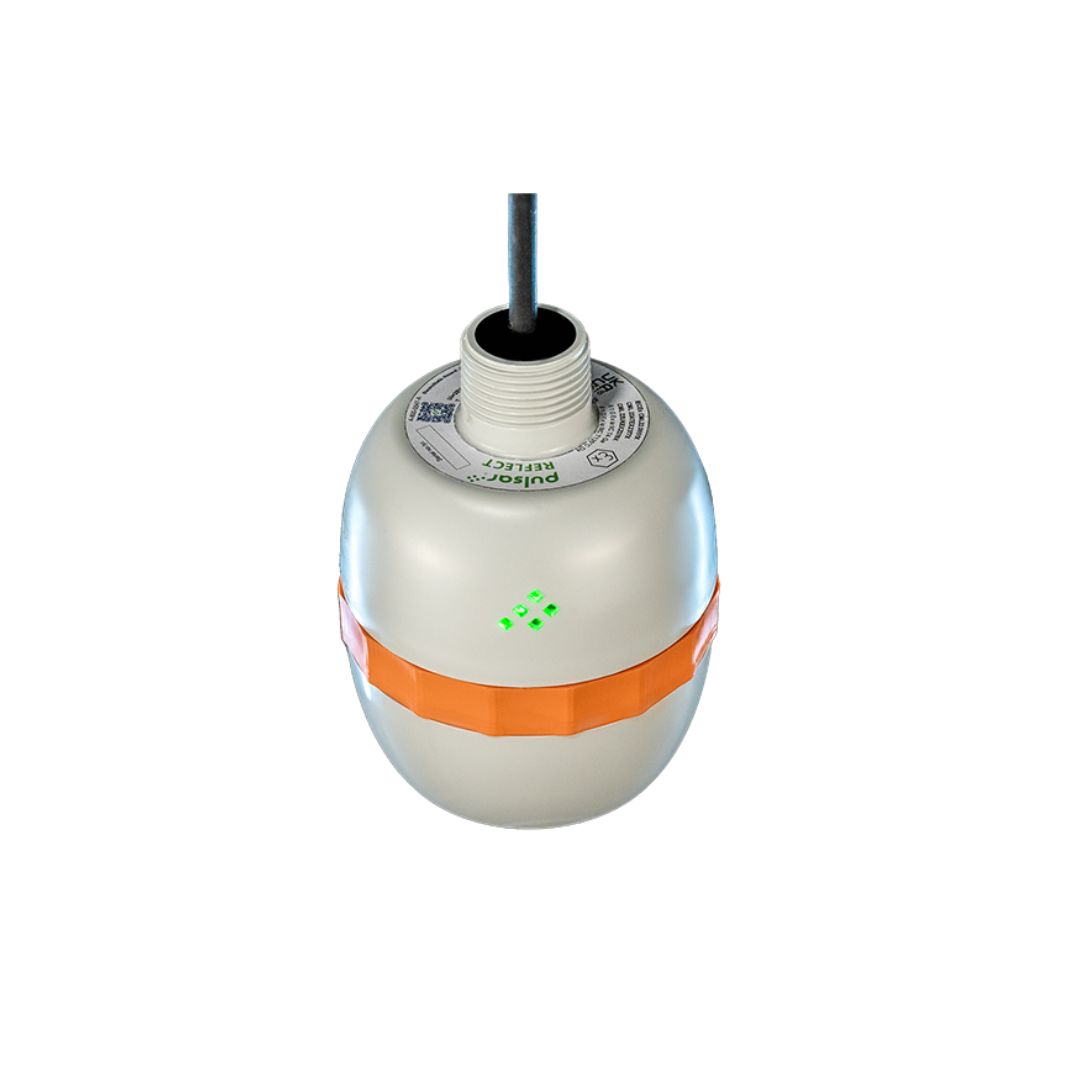

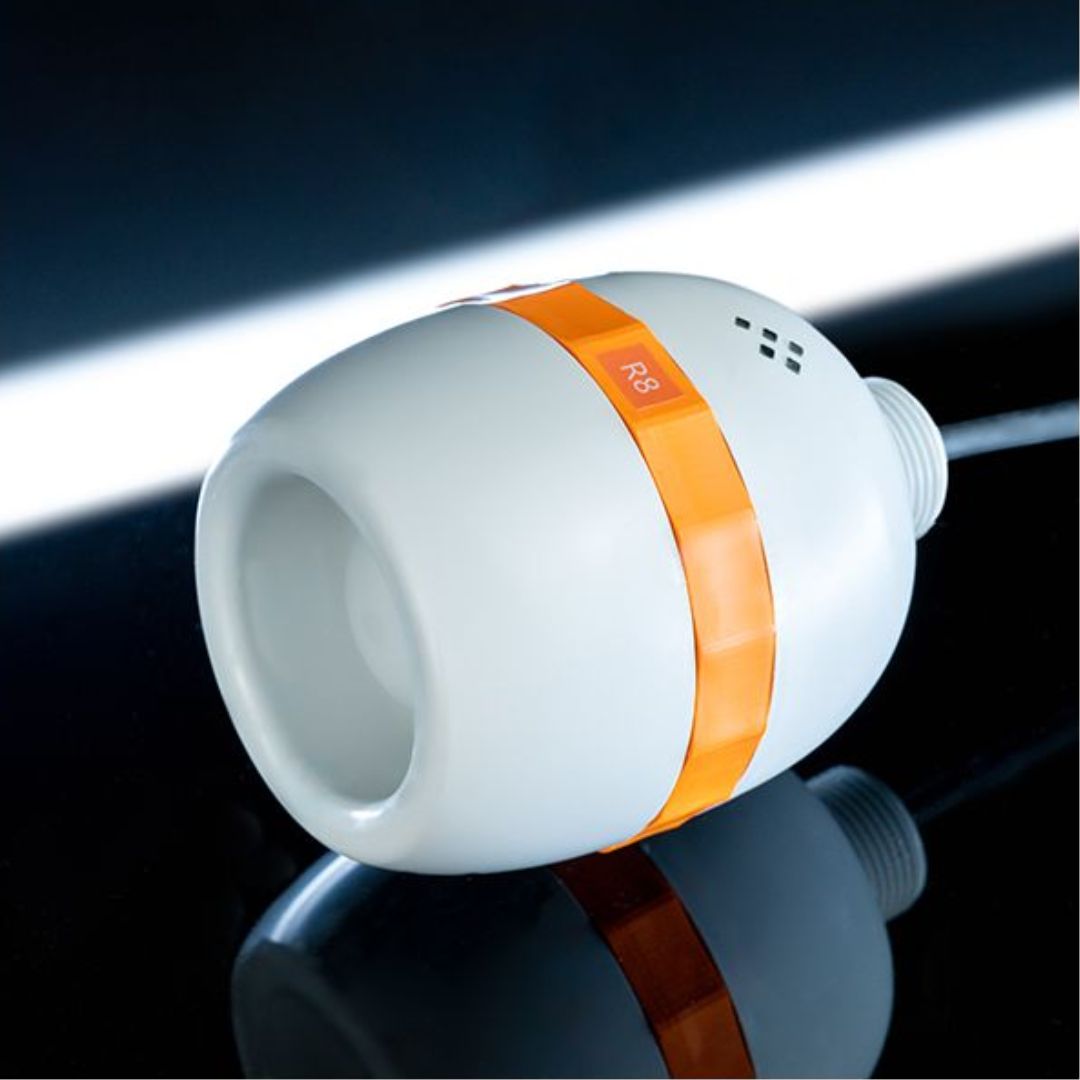

Pulsar REFLECT™ Radar Level Monitoring
REFLECT™ Radar Level MonitoringREFLECT™ provides accurate monitoring of liquids and solids in critical measurement applications, ensuring complete peace of mind with a product that requires minimal skills and human intervention, thereby minimizing lifetime cost of ownership.
Description
Download
Using FMCW Radar Technology, REFLECT™ transmits continuously, constantly varying the frequency of the signal. The frequency of the returning signal is compared to the signal being emitted at that moment, the difference between the two corresponding to the time the signal has taken to return. FMCW technology compared to pulsed radar technology is the most accurate of the two because of its narrower beam angle and in most cases stronger signal.
Features and Specifications

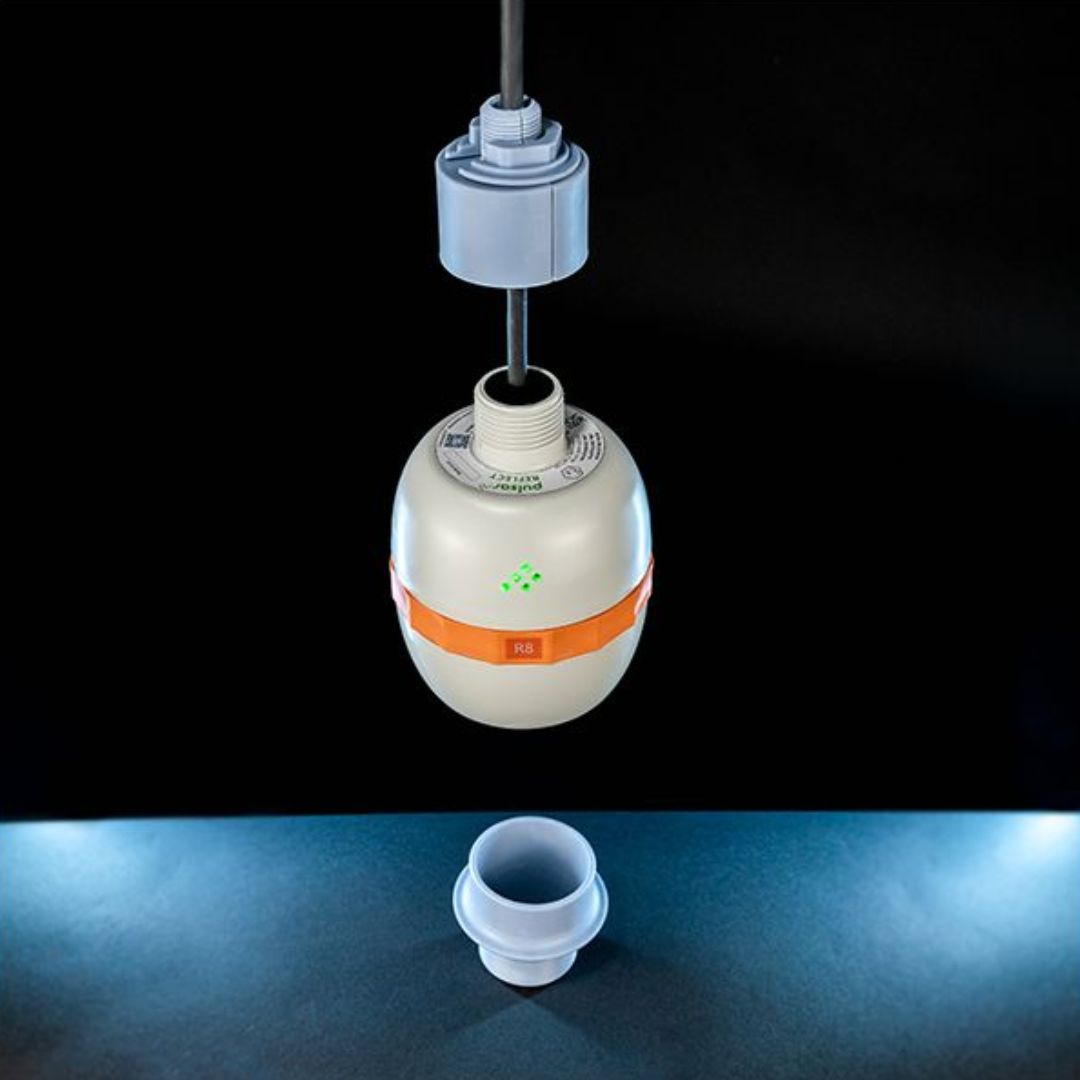

- Easy installation using REFLECTTILT™ 6-degree beam angle
- Compatible with HART communications DATEM Technology
- Measurement Range: 8 m or 20 m (26.2 ft or 65.6 ft)
Application The REFLECT™ is available for a wide range of applications including: Potable Water Treatment Wastewater Treatment Tank Level Monitoring Chemical Tank Level Monitoring
