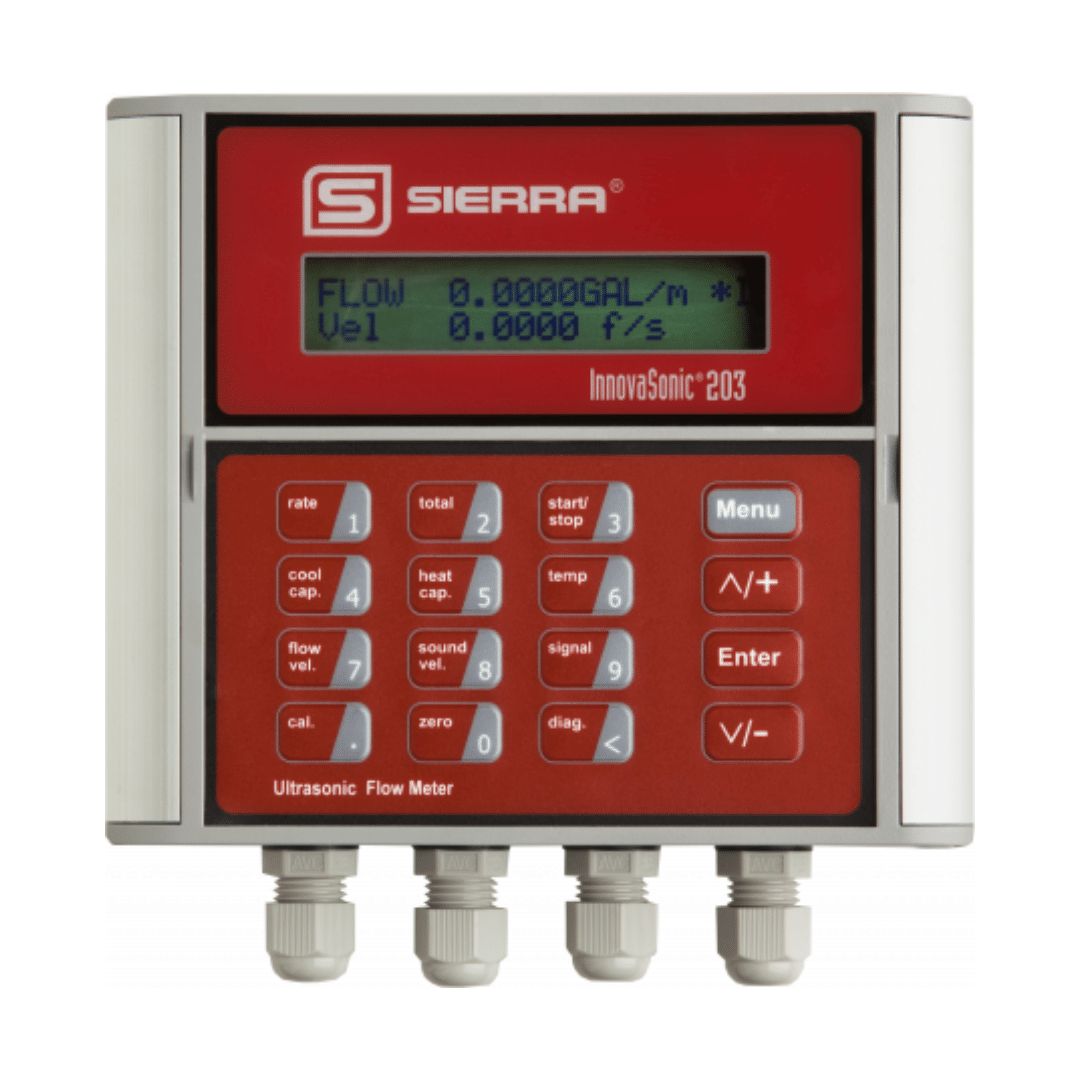

Sierra 203 Economical Ultrasonic Flow Meter
SKU: 1231
S$0.00Price
The InnovaSonic 203 liquid flow meter is optimized for customers still looking for high performance, but needing a lower-cost, less feature-rich option for dedicated clamp-on ultrasonic metering. The 203 digital liquid flow meter optimizes the measurement of water as it flows in HVAC, irrigation and other liquid applications.
Description
Download
Features:
- One meter for a wide range of pipe sizes from 2 inch to 48 inches (50.8 mm to 1200 mm)

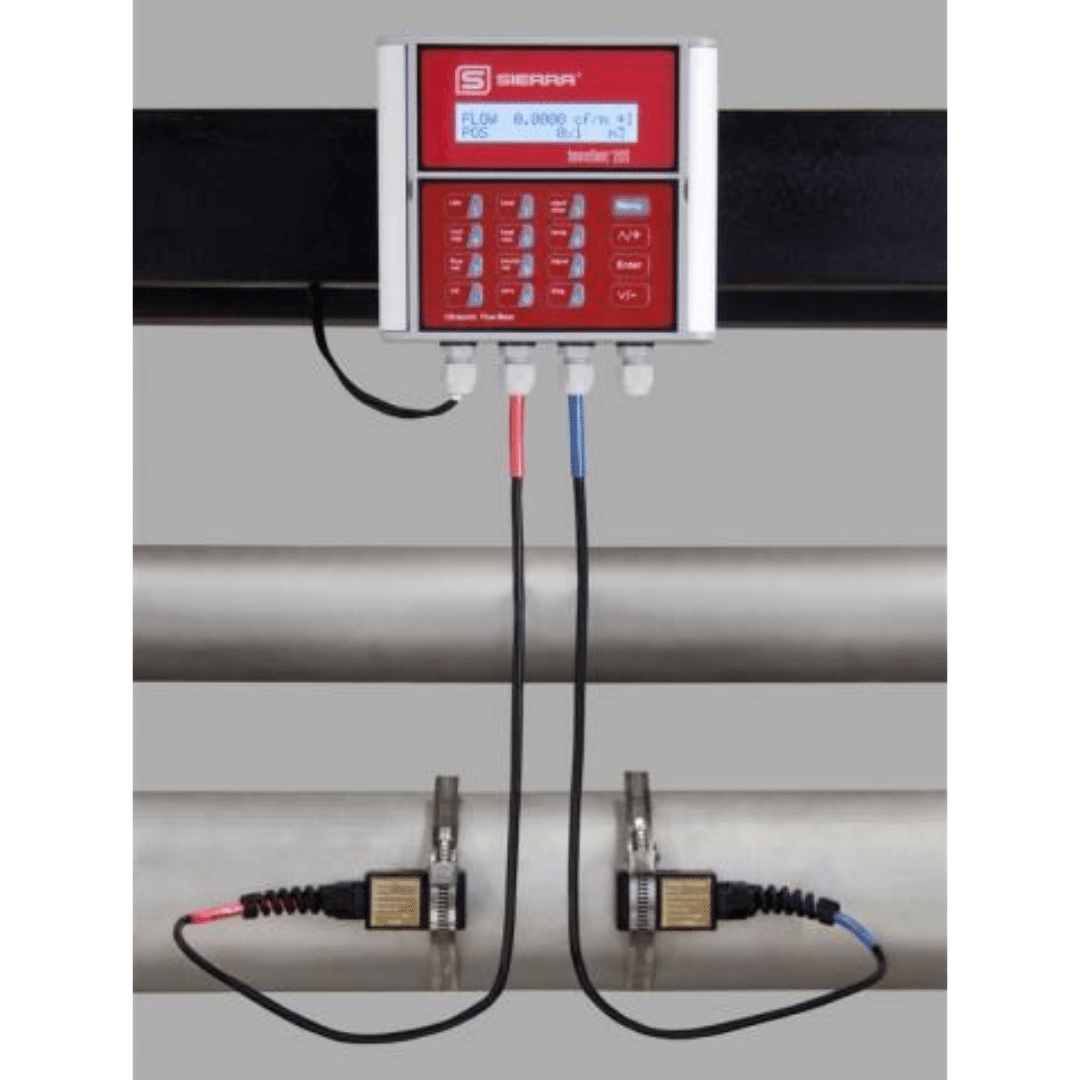

- Clamp-on encapsulated IP 68 sensors require no pipe cutting, no plant shut-down, and are hygienic measurement leading to lower installation and labour costs
- Measurement is independent of fluid conductivity for a wider applicability compared to magnetic meters
- Programmable frequency output and VAC power emulates turbine/propeller meters
- Accuracy +/- 1.0% of reading from 1.6 to 40 ft/s (0.49 to 12 m/s)Repeatability +/- 0.3% of reading
- Wide operating temperature range 32°F to 140°F(0°C to 60°C)16 tactile keys with 12 dual-function keys for easy setup
- Configurable pulse and relay output10 to 36VDC at 1A power supply
- Daily, Monthly, and Yearly totalized flowLightweight (0.7 kg; 1.5 lb) PC/ABS IP 65 transmitter
- Digital Output: Modbus RTU, RS-485Daily, monthly and yearly totalized flow
- Display: 40 character, 2 line (20 x 2) lattice alphanumeric, backlift LCDUp to 99% RH (non-condensing)
- Common Applications: Cooling and heating fluid measurementsWater and wastewater measurements
- Leak detection in piping systems
- Monitoring and controlling of HVAC systems
- Contactless product recognition
- Interface detection
- Automated process control
