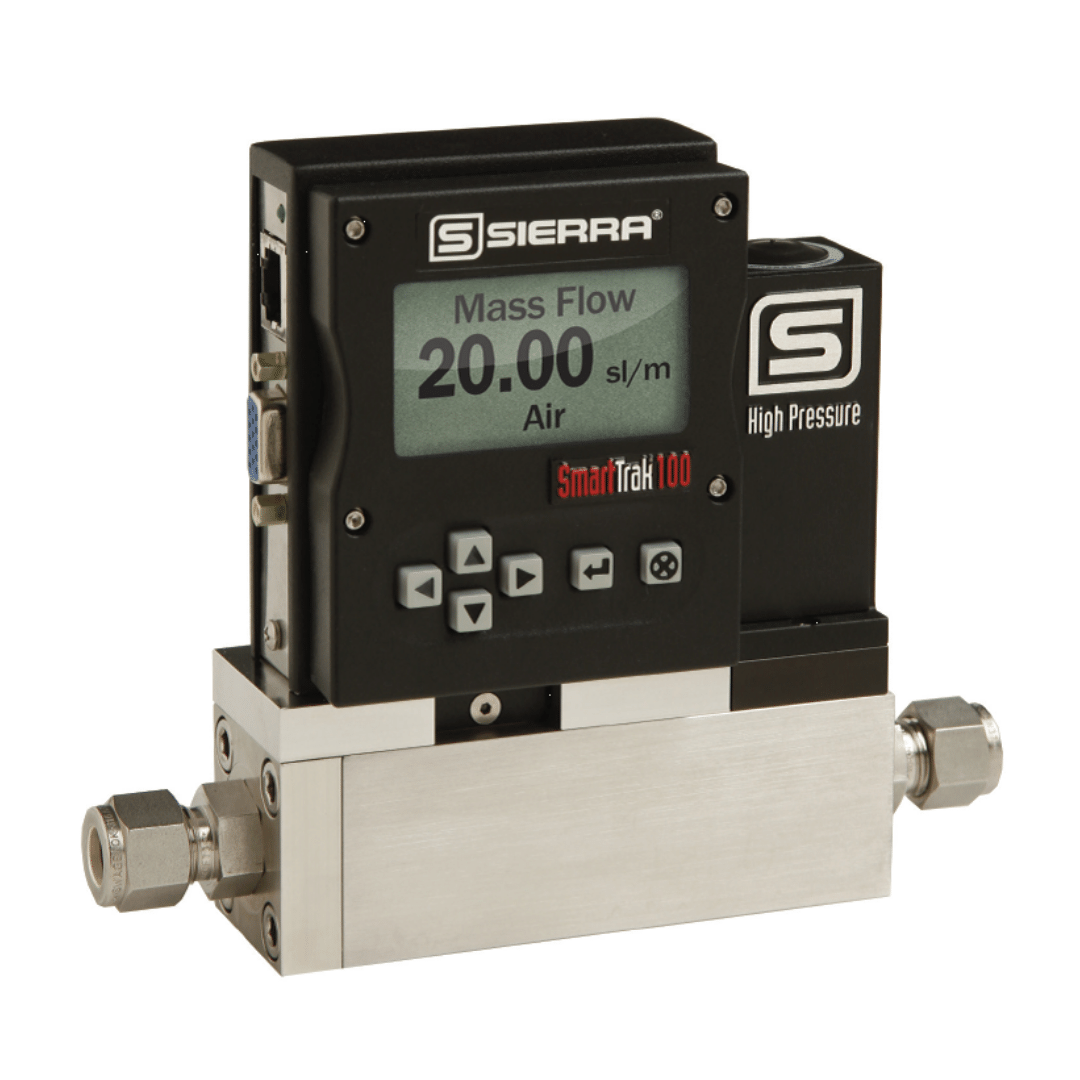

Sierra SmartTrak® 100 Series Ultra-High Pressure Gas Flow Meters & Controllers
SKU: 665
S$0.00Price
SmarTrak 100HP combines the high performance of the SmartTrak® with a wider, more robust flow body, all-welded sensor seals, an innovative new valve design called ValFlex™, and a state-of-the-art high pressure calibration facility. The result is an instrument with increased application flexibility and accuracy in high pressure gas flow control applications.
Description
Download
Features:
- Ideal for pilot plants, hydrogenation reactors, and autoclave processes.
- Measure and control gas mass flow rates over an inlet pressure range of 500 to 5000 psig (34.5 to 345 barg).
- Flow ranges from 100 sccm to 20 slpmHigh accuracy +/- 1.0% of full scale; repeatability +/- 0.2% of full scale.
- Wide differential pressure range from 0.345 bard (5 psid) to 345 bard (5000 psid).
- Innovative new ValFlex™ control valve design for precision control over a wide range of pressures and flow ratesLeak-by of as little as 4 sccm at 5000 psid (345 bard), depending on orificeInert, carbon-reinforced polyamide valve seat increases valve durability and precision.
- Special high-pressure rated seals minimize gas permeabilityAdd Sierra’s Compod™ to run small-scale pilot plants or control high-pressure reactors and autoclave processes without the expense of DCS or PLC systems.
- Proprietary high-pressure calibration facility, directly traceable to NIST24 VDC input power reduces installation cost and complexity.
- Unique Pilot Module (mounted or hand-held) lets you view and change critical control functions.
- Choose from multiple analog or digital signals Supports Modbus, Profibus DP, Foundation FieldbusCE approved.
