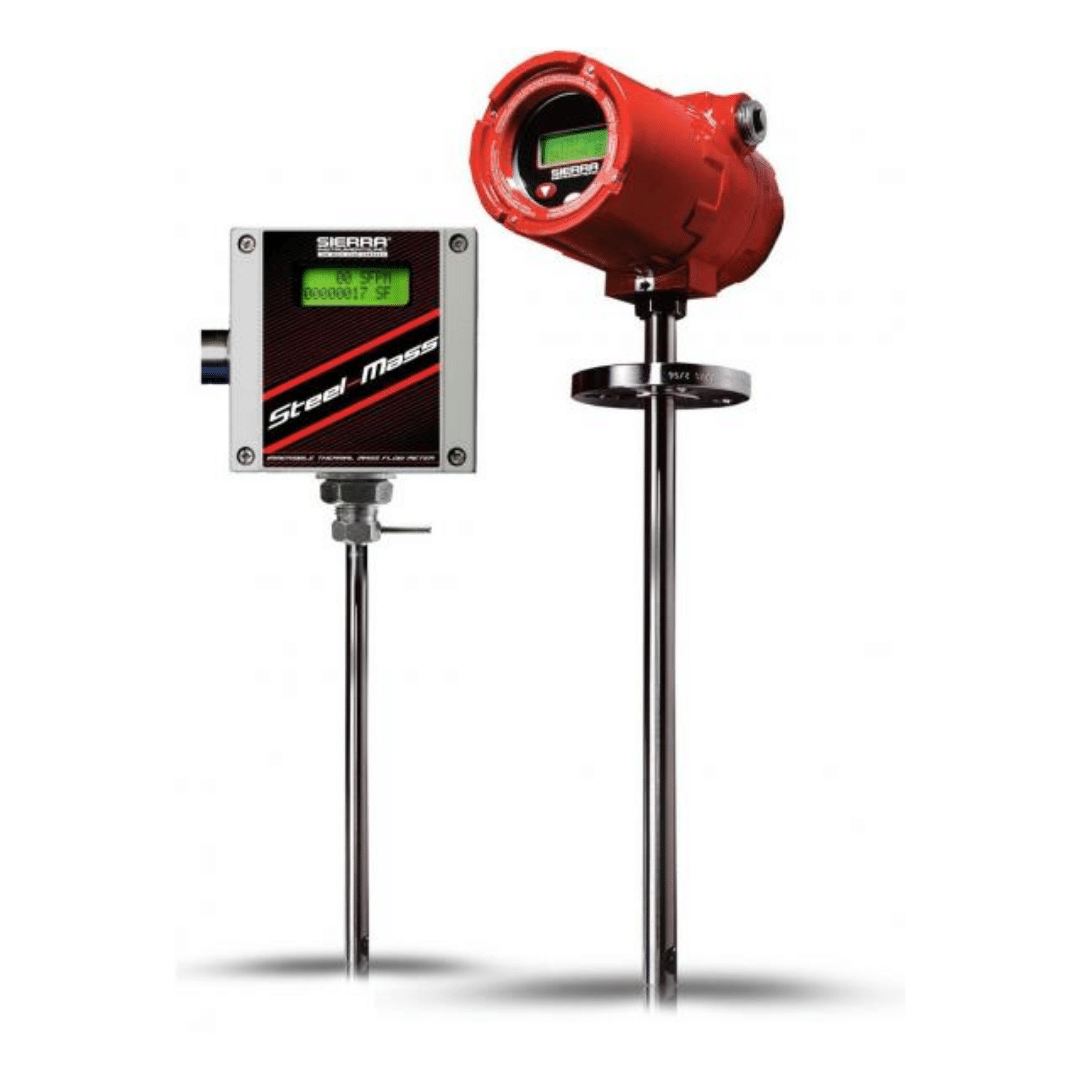

Sierra SteelMass 640s Immersible Thermal Gas Mass Flow Meter
Sierra Instruments’ SteelMass Model 640S immersible thermal mass flow meter is designed for the toughest industrial gas flow measurement applications. The versatile microprocessor-based transmitter integrates the functions of flow measurement, flow-range adjustment, meter validation and diagnostics in either a probe-mounted or remote housing. Mass flow rate and totalized flow, as well as other configuration variables, are displayed on the optional 2 x 12 LCD display
Description
Download
Features:
Direct mass flow monitoring eliminates need for separate temperature and pressure inputs
Accuracy +/- 1% of reading plus 0.5% of full scale
Patented Dry-Sense™ technology eliminates sensor drift
State-of-the-art calibration facility insures a highly accurate calibration that matches the application
Field validation of meter electronics and sensor resistance verifies flow meter performance
One-second response to changes in flow rate
FM, CSA, PED, ATEX and GOST R/RTN certified for hazardous areas
CE approved
High temperature option to 750°F(400°C) available
Multipoint options available
Integrated self-cleaning purge option available for dirty flows
Low and high pressure hot taps available
Optional HART, Modbus and Profibus DP available, Foundation Fieldbus
