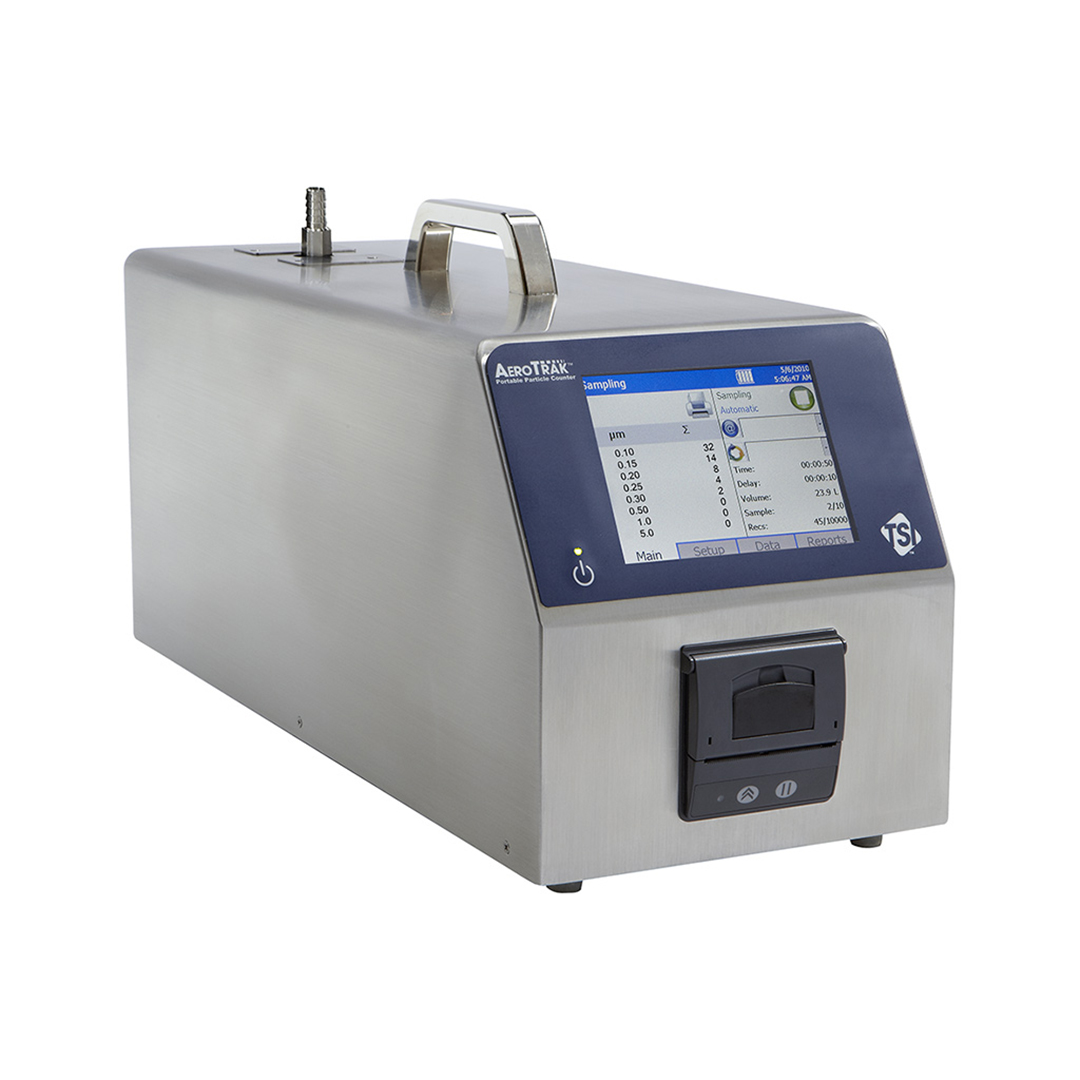

The Model 9110 can generate pass/fail reports for ISO 14644-1 via the onboard printer and the supplied TrakPro™ Lite Secure download software. Multiple particle counter configurations can be conveniently stored and uploaded as needed. This product can be used as a standalone particle counter or integrated into a facility monitoring system like TSI’s FMS 5.

The Model 9110 complies with all the stringent requirements set forth in ISO 21501-4. It is calibrated with NIST traceable PSL spheres using TSI’s world-class Classifier and Condensation Particle Counters.



APPLICATIONS

• Particle contamination monitoring
• Installed filter leak testing
• Cleanroom certification



Features and Benefits:

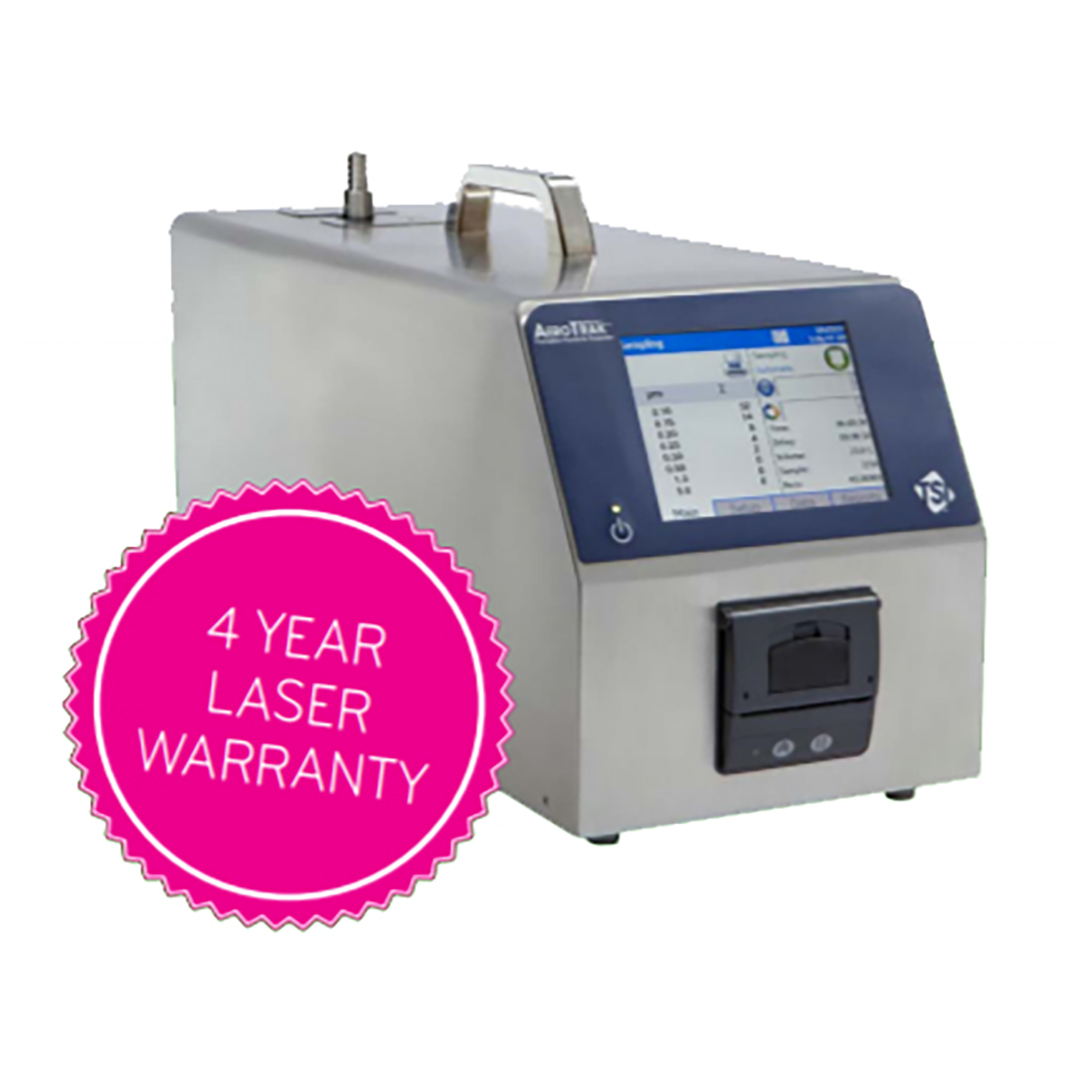

• 4 Years Laser Warranty
• Accurately measures particles at 0.100 μm
• 0.100 to 10.0 μm size range
• Up to eight channels of simultaneous data
• 1.0 CFM (28.3 L/min) flow rate
• Complies with all requirements of ISO 21501-4
• Best choice for testing Class 1 and 2 Clean Rooms
• Onboard reports for ISO-14644-1, EU GMP Annex 1, and FS209E
• External certification reports via TrakPro™ Lite Secure
• Utilizes enhanced HeNe laser
• Highly repeatable and reliable measurements/data
• Data storage: 250 zones, 999 locations, and 10,000 samples
• USB, USB storage device, ethernet data transfer and pulse outputs
• Industry’s loudest audible alarm
• Allows storage and recall of specific Recipes and Zone configurations
• Displays up to three environmental parameters
• Stainless steel enclosure
• Seamless integration with M32-01 manifold
