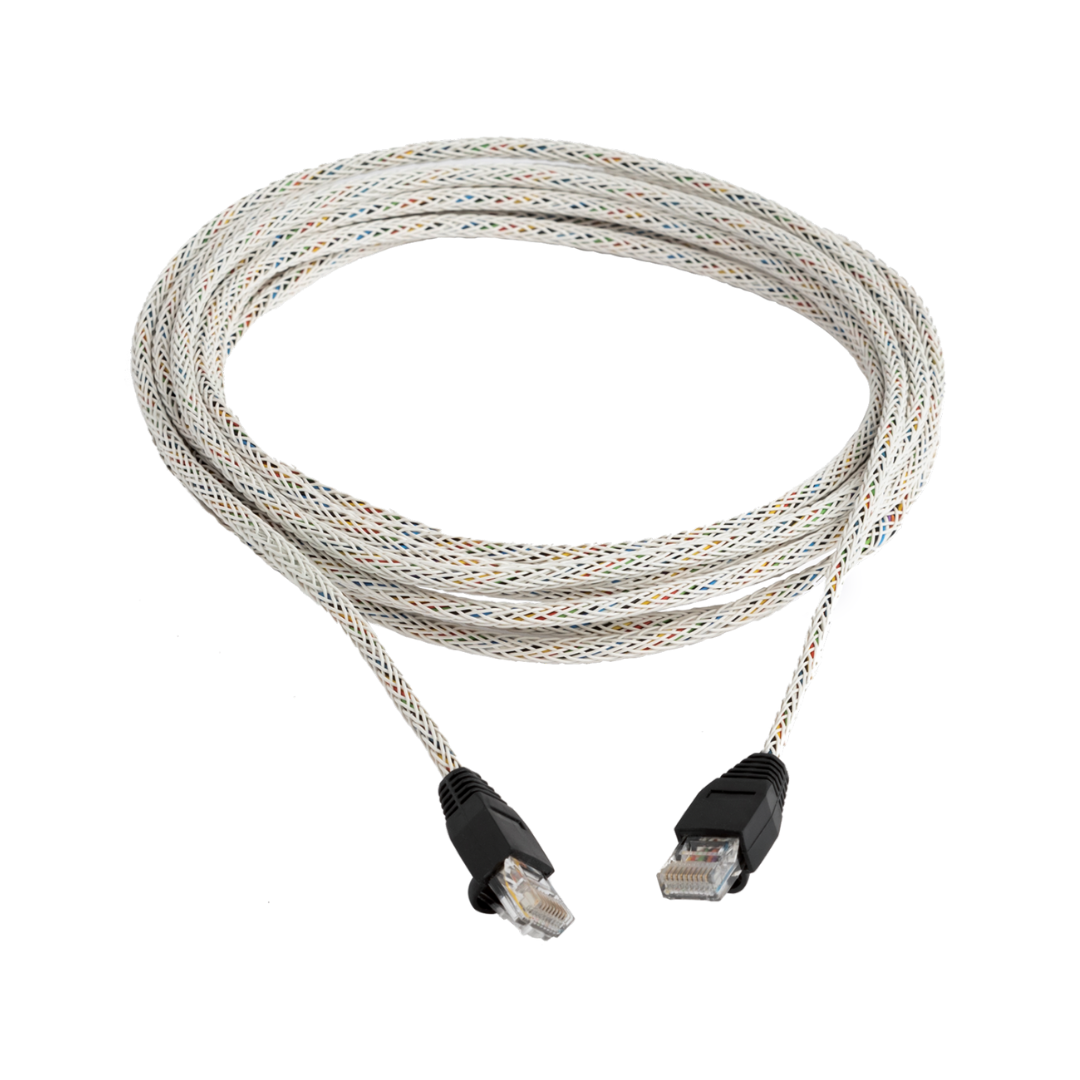

Andel Floodline® Multi-8 Water Leak Detection Cable
SKU: Floodline Multi-8 Water Leak Detection
Ask for Best Price
Multi-zone, water-sensitive cable that allows up to eight separately reporting leak detection zones from a single cable
Andel’s robust Multi-8 Detection Cable complies with stringent fire, smoke and halogen tests and is a multi-zone, water-sensitive cable that allows up to eight separately reporting leak detection zones from a single cable. The zone changeover points along the cable are provided by either traditional 8-zone junction boxes or Andel’s Plug And Play system.
The cable is available in a variety of lengths to provide as much coverage as required and typically between 5 metres and 15 metres.
The sensor can be wetted and dried any number of times provided the cable is not contaminated with a substance that permanently changes its electrical characteristics. If the contamination is soluble then the cable can be removed, washed (clean water only), dried and returned to use subject to the level of contamination.
Free local delivery
Manufacturer warranty
Local SG support
Description
Standards tested and met: CPR (Construction Products Regulation) Testing
Under the harmonised European standard EN 50575 this cable has been tested for heat release, smoke production and flame spread in accordance with EN 50399:2011+A1:2016 and EN 60332-1-2:2004+A11:2016.
Tested under AVCP (Assessment and Verification of Constancy of Performance) system 3 by a notified body the cable was classified as Euroclass Dca-s2,d0.
Benefits at a glance
- Allows up to eight separately reporting leak detection zones from a single cable
- For sensitive environments including sub-floors, above suspended ceilings, roofs, pipes, around the base of equipment and tanks, drip trays and storage areas.
- Detects the presence of water at any point along its entire length
- Easy to install, tough, flexible, lightweight and quick drying, the cable can be wet and dried any number of times
- Available in any length to provide as much coverage as required, typically between 5 metres and 15 metres
- Connects to any Floodline® control panel
- Complies with stringent fire, smike and halogen tests, under European fire performance requirements EN 50575 this cable has been tested for heat release, smoke production and flame spread in accordance with: EN 50399:2011+A1:2016 and EN 60332-1- 2:2004+A11:2016.
Technical data
| Component | Specification | Details |
|---|---|---|
| General | Product Type | Multi-Zone Water Leak Detection Sensor Cable (V2) |
| Benefits | Precise leak localization across multiple zones, reduces cabling complexity, tough, flexible, lightweight, quick drying, reusable, enhanced fire safety compliance, easy to install | |
| Warranty | 10-year warranty (when subscribed to the Andel Service and Maintenance Plan) | |
| Cable Construction | Material | Tough, all-polymeric, low smoke and fume, zero-halogen construction |
| Cores | Internal conductive elements within the robust polymeric jacket | |
| Sensitivity | High-sensitivity for immediate detection of conductive liquids | |
| Physical Characteristics | Diameter | Approximately 5mm nominal |
| Lengths | Available in a variety of pre-determined or bespoke lengths, typically between 5 metres and 15 metres per multi-zone segment (the entire cable run can be longer, segmented into 8 zones) | |
| Zone Definition | Method | Zone changeover points along the cable are defined by either traditional Floodline® 8-zone junction boxes or Andel’s Plug & Play Auto-Connect system |
| Zone Length | Zones can be any length, but typical lengths are between 5 and 15 meters for optimal performance and localization | |
| Installation | Method | Cable is laid loosely; can be fixed to floor or other surfaces using standard 6mm tower clips, self-adhesive clips, or tie-wraps |
| Identification | Special Caution Tags are typically attached at regular intervals to identify zone boundaries | |
| Compatibility | Control Panels | Connects to any Floodline® zonal control panel (e.g., Multi-Zone, HLD, etc.) |
| Compliance | Standards Met | CPR (Construction Products Regulation) Testing |
| Fire Performance | Tested under harmonized European standard EN 50575 for heat release, smoke production, and flame spread | |
| Specific Fire Tests | In accordance with EN 50399:2011+A1:2016 and EN 60332-1-2:2004+A11:2016 | |
| Euroclass Classification | Classified as Euroclass Dca-s2,d0 (Standard sensitivity version) or Euroclass Eca (High Sensitivity version, for even smaller amounts of water/condensation) |
